Power your smart factory with the ultimate Industrial Capacitive Touch Panel PC. Designed for the harshest environments, this all-in-one solution combines the computing power of a desktop with the durability of an industrial controller. Whether you are running SCADA systems, machine vision applications, or outdoor kiosks, our Industrial Capacitive Touch Panel PC delivers 24/7 reliability.
Why Choose Our Industrial Capacitive Touch Panel PC?
Unlike consumer tablets, this device is an Industrial PC built to last. It features a fanless cooling design that prevents dust from entering the chassis, extending the lifespan of the internal components. The true-flat front panel is not only stylish but also easy to clean, preventing the accumulation of grime in corners.
🛠️ Versatile Expansion Capabilities

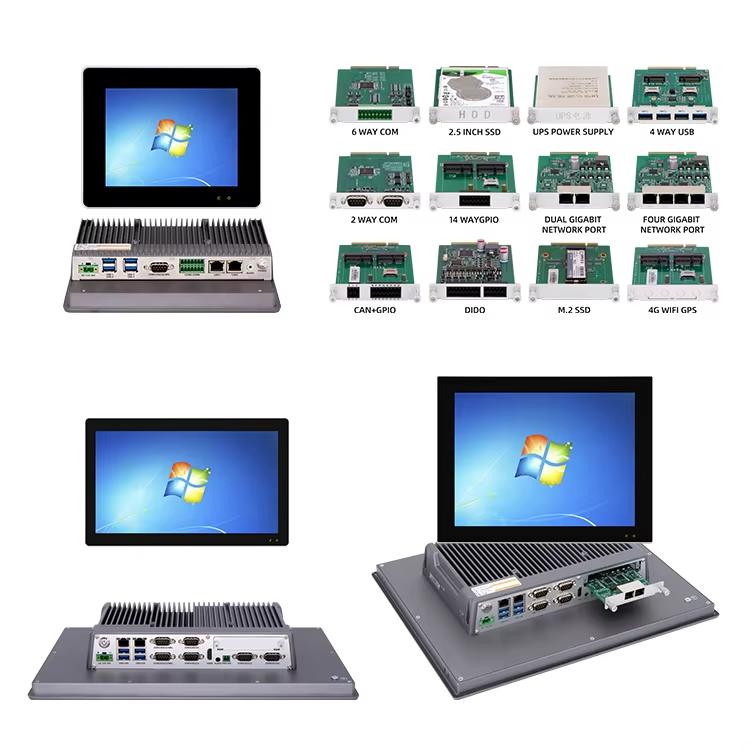

One of the standout features of this series is the integrated Expansion Slot. We understand that industrial projects often require specific interfaces. Our chassis includes space for a standard Expansion Card, allowing you to add:
- Motion Control Cards for robotic arms.
- Data Acquisition (DAQ) Cards for sensor monitoring.
- Additional LAN/COM Ports for legacy equipment connectivity.
Unmatched Touch Experience
The Industrial Capacitive Touch Panel PC utilizes advanced P-CAP technology. This multi-touch interface supports zoom, pinch, and swipe gestures, even while wearing thin latex gloves. The high-brightness LED screen ensures visibility under strong warehouse lighting.
| Specification | Technical Details |
| Screen Sizes | 8″, 10.4″, 12.1″, 15″, 17″, 19″, 21.5″, 32″ |
| Processor Options | Intel Celeron J1900 / Core i3 / i5 / i7 (Gen 4/6/8/10) |
| Touch Type | Projected Capacitive (10-Point Multi-touch) |
| Expansion Slot | 1x PCI or 1x PCIe x4 Slot (Selectable) |
| Protection Rating | Front Panel IP65 Rated (Water & Dust Proof) |
| Operating Temp | -10°C to 60°C (Industrial Wide Temp) |
Seamless Integration & OS Support
Our Industrial Capacitive Touch Panel PC supports a wide range of operating systems, including Windows 10 IoT Enterprise, Windows 11, and Linux (Ubuntu/CentOS). This ensures compatibility with your proprietary industrial software without the need for complex driver workarounds.
📋 Frequently Asked Questions (FAQ)
Q: What can I use the expansion slot for?
A: The expansion slot on the Industrial Capacitive Touch Panel PC allows you to install 3rd-party PCI or PCIe cards, such as firewire cards for cameras or specialized fieldbus cards (Profibus/CANopen).
Q: Is the screen readable outdoors?
A: Standard brightness is 350-400 nits. For outdoor use, we offer a “High Brightness” upgrade (1000 nits) with optical bonding to reduce glare.
Q: Can it run 24/7 without overheating?
A: Yes. The aluminum alloy body acts as a giant heatsink, dissipating heat efficiently without the need for noisy fans that can fail over time.
Upgrade your infrastructure today with the robust and flexible Industrial Capacitive Touch Panel PC.
Configure Your Expansion Card Now
Not sure which expansion module fits your project? Contact our engineers for a free consultation.
🏭 Ideal Industry Applications
The versatility of the Industrial Capacitive Touch Panel PC makes it the top choice for various sectors:
- Smart Manufacturing: Use it as an HMI (Human-Machine Interface) to control assembly lines or CNC machines with precision. The IP65 front panel protects against oil splashes and metal dust.
- Logistics & Warehousing: Mounted on forklifts or sorting stations, the Industrial Capacitive Touch Panel PC helps track inventory in real-time. Its vibration-resistant design ensures stability even on moving vehicles.
- Kiosks & Vending: With its high-brightness screen and sensitive touch, it serves perfectly as a self-service terminal in outdoor or semi-outdoor environments.
- Medical Automation: The easy-to-clean flat surface meets hygiene standards required in pharmaceutical packaging and hospital control rooms.
Invest in the Industrial Capacitive Touch Panel PC today to future-proof your industrial operations.
