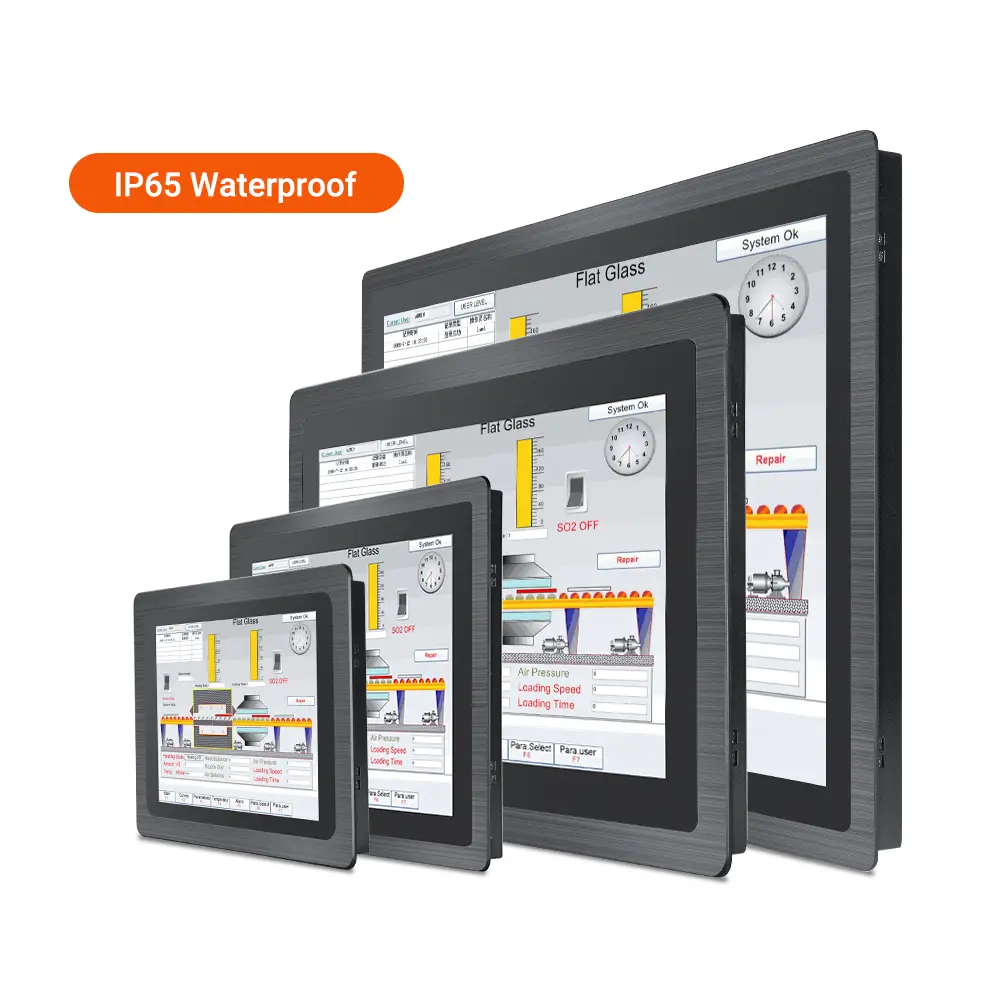

The Ultimate Industrial Touch Screen Monitor for Harsh Environments
Empower your automation systems with our rugged Industrial Touch Screen Monitor. Engineered for extreme reliability, this display solution is housed in a durable aluminum alloy enclosure with a sleek 3mm bezel. Whether you are building an outdoor kiosk, a factory control panel, or a marine navigation system, this IP65 Waterproof Monitor ensures uninterrupted operation under the toughest conditions.
Rugged Design: IP65 Waterproof & Aluminum Alloy
Industrial environments demand hardware that can withstand dust, water, and impact. Our Industrial Touch Screen Monitor features:
- IP65 Front Panel: The front screen is completely sealed against dust ingress and low-pressure water jets, meeting the IP65 standard.
- Aluminum Alloy Body: Unlike plastic monitors, our metal casing provides excellent heat dissipation and resists corrosion.
- Wide Temperature Range: Operates smoothly from -10°C to 60°C, making it suitable for freezing warehouses or hot manufacturing floors.
Versatile Touch Technologies: Capacitive vs. Resistive
We understand that different projects require different interaction methods. This Industrial Monitor is available in three configurations to match your specific needs:
- PCAP (Projected Capacitive): Supports 10-point multi-touch. High transmittance (≥88%) and works like a smartphone. Ideal for interactive kiosks.
- Resistive Touch: Single-point touch that works with gloves or a stylus. Perfect for heavy industry where operators wear protective gear.
- Non-Touch: A pure display solution with high clarity (≥92% transmittance) for information display boards.
Universal Connectivity & Wide Voltage Power
Powered by the stable RTD2483 controller chip, this monitor supports a wide range of video inputs including HDMI, VGA, and DVI. It seamlessly connects to industrial PCs, Raspberry Pi, or surveillance systems.
Critically, it features a 12V-36V Wide Voltage Input (DC 2.1 Interface). This protects the device from voltage fluctuations common in factory power grids or vehicle-mounted applications.
| Specification Category | Technical Details |
|---|---|
| Product Type | Industrial Touch Screen Monitor (LCD Display) |
| Available Sizes | 10.1″ / 12″ / 15″ / 17″ / 19″ / 21.5″ / 23.8″ |
| Display Resolution | Up to 1920*1080 @ 60Hz (Full HD) |
| Touch Options | Capacitive (10-point) / Resistive (Single) / Non-touch |
| Interfaces (I/O) | 1*HDMI, 1*VGA, 1*DVI, 1*Audio I/O, 1*USB (for Touch) |
| Power Supply | Input: DC 12V-36V Wide Voltage | Output: DC 24V/4A |
| Reliability Tests | Vibration: IEC 60068-2-64 | Impact: IEC 60068-2-27 |
| Warranty | 3 Years Warranty |
Rigorous Industrial Certification
Safety and compliance are non-negotiable. Our monitors have passed strict testing standards, including CCC, CE, FCC, EMC, CB, and ROHS.
The Mean Time Between Failures (MTBF) is tested at 7×24 hours continuous operation, ensuring your production line never stops due to display failure.
Frequently Asked Questions (FAQ)
Q1: Can I customize the logo on the bezel?
Yes, we offer full OEM/ODM services. We can laser print or silk-screen your company logo on the aluminum alloy bezel, even for small batch orders.
Q2: Is this monitor compatible with Windows 10 and Linux?
Absolutely. The Industrial Touch Screen Monitor acts as a standard display via HDMI/VGA. The USB touch interface is plug-and-play compatible with Windows 7/10/11, Linux, and Android systems.
Q3: How do I mount this monitor?
The unit supports standard VESA mounting holes (75mm or 100mm) for wall brackets or desk stands. It also supports embedded mounting (panel mount) for installation into control cabinets.
Q4: What is included in the package?
The package includes the monitor, a power adapter, an HDMI cable, a USB touch cable, and mounting brackets.
Need a Custom Quote?
We provide factory-direct pricing for bulk orders. Whether you need a 10.1-inch sample or 100 units of 23.8-inch screens, contact our engineering team today. We respond within 24 hours.
