This handheld POS terminal combines a 5.5-inch touchscreen, Android 11 or 12 path, integrated 58 mm thermal printer and 5000mAh battery in a compact mobile enclosure. The supplier configuration lists an MTK80 quad-core 1.3GHz platform, 2 GB RAM, 16 GB storage and 4G/3G/2G, Wi-Fi, Bluetooth, GPS, USB and NFC references. PENPOSTECH confirms cellular bands, software, printer requirements, NFC use, accessories and compliance before quotation.
Key Advantages
- Compact touchscreen and receipt printer in one handheld device.
- 5.5-inch portrait interface for mobile POS and service applications.
- Android 11 or Android 12 configuration paths.
- Integrated 58 mm thermal printing for compatible receipt workflows.
- 5000mAh listed battery capacity for mobile use.
- Cellular, Wi-Fi, Bluetooth, GPS, USB and NFC references for project review.

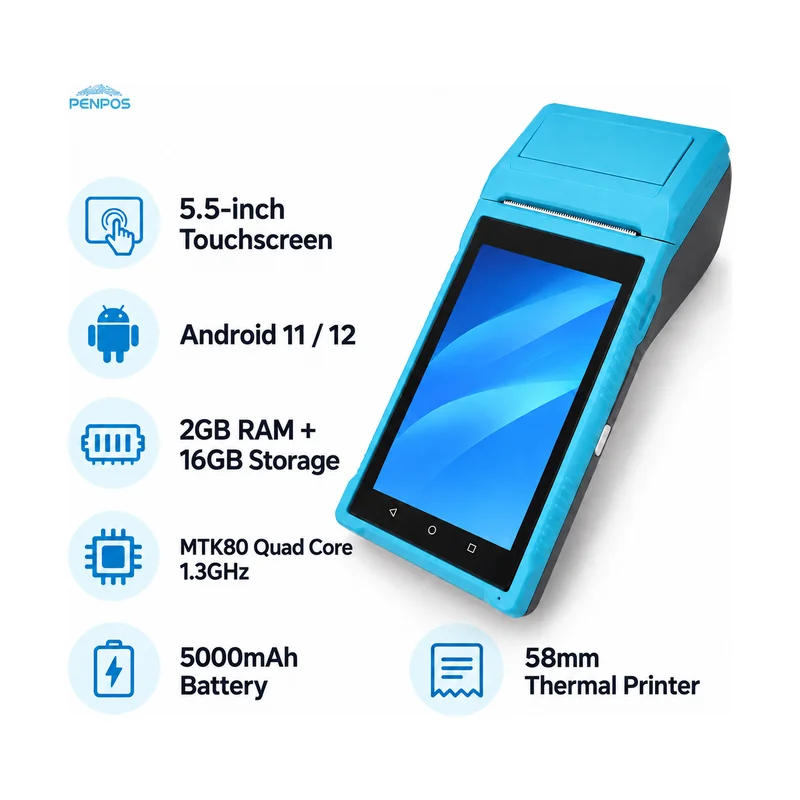

Technical Specifications
| Product Family | Q1 compact handheld POS terminal family with integrated thermal printer |
|---|---|
| Screen Size | 5.5-inch touchscreen |
| Processor | MTK80 quad-core processor at 1.3GHz |
| Operating System | Android 11 or Android 12 paths are listed. Final version, image, licensing, update policy and application compatibility require configuration confirmation. |
| Memory Storage | 2 GB RAM and 16 GB storage reference |
| Printer | Integrated 58 mm thermal printer; supplier lists 58 x 40 mm sheet size. Print speed, dot density, cutter, roll diameter, mechanism life, command set and paper compatibility require confirmation. |
| Battery | 5000mAh listed capacity. Runtime, charge time, charger, standby behavior and replaceability depend on the final configuration and workload. |
| Connectivity | 4G, 3G, 2G, Wi-Fi, Bluetooth, GPS and USB are supplier-listed. NFC is also listed as connectivity technology. Cellular bands, SIM format, Bluetooth version, Wi-Fi standard, positioning performance, NFC use and regional support require confirmation. |
| Applications | Supermarket, retail-store and restaurant applications |
| Oem Odm | Operating-system image, software environment, communications, NFC use, enclosure color, approved corner branding, labels, accessories and packaging can be reviewed as project options subject to compatibility and written confirmation. |
Product Features
- The 5.5-inch portrait touchscreen keeps the terminal compact enough for hand-held counter service, assisted selling and tableside use. The page does not assume a particular panel resolution, brightness, touch technology, cover-glass grade or glove behavior because those details were not established from the source. Buyers should provide the intended indoor or outdoor environment, operating hours, touch workflow and visibility requirement so the final display can be confirmed.
- The listed computing platform uses an MTK80 quad-core processor at 1.3GHz with 2 GB RAM and 16 GB storage. It is suitable as a baseline for a dedicated POS application, but performance depends on the software build, background services, database size, network traffic and update policy. PENPOSTECH will request the APK, middleware requirements, peripheral drivers and expected transaction workflow before treating the configuration as compatible.
- Android 11 and Android 12 are both supplier-listed paths. They should not be read as two systems installed on every unit or as a promise that every application will run unchanged. The selected system image, Google-service requirement, kiosk mode, device-management method, API level, language, security patch, update method and application permissions must be confirmed for the ordered batch.
- The integrated thermal mechanism is listed for 58 mm media, with a 58 x 40 mm sheet-size reference. This makes the terminal relevant to compact receipts, order slips and service tickets where an 80 mm roll is unnecessary. Print speed, effective print width, resolution, roll diameter, paper thickness, cutter type, mechanism life, darkness, barcode quality, command set and paper-loading tolerance remain configuration items. Sample paper and real receipt artwork should be tested before volume production.
- A 5000mAh battery capacity is listed, but usable runtime cannot be calculated from capacity alone. Screen brightness, radio use, cellular signal, print density, print frequency, application workload, standby policy, battery age and ambient temperature all affect operating time. Charger type, charging time, battery replaceability, spare-battery supply and regional plug must be confirmed in the quotation and sample stage.
- The source lists 4G, 3G, 2G, Wi-Fi, Bluetooth, GPS and USB communication references, with NFC also named in the connectivity field. Cellular frequency bands and local carrier approval must be matched to the destination market. Wi-Fi standard, Bluetooth version, USB function, GNSS behavior, SIM format and NFC mode were not fully established. NFC does not by itself confirm contactless bank-card acceptance, EMV approval, PCI scope or acquirer compatibility.
- The long handheld shell and top-opening printer are available in source imagery in orange and blue finishes. Color availability for the selected quantity, tooling batch and branding method must be confirmed. PENPOSTECH can review approved labels, startup artwork, package print and a small corner brand treatment, while keeping the product body free of unsupported marks unless the buyer requests a branded sample.
- The supplier associates the terminal with supermarket, retail-store and restaurant use. Actual deployment still depends on POS software, cloud or local database, tax and receipt rules, language, payment method, network coverage and operator training. A sample test should cover login, order entry, printing, reconnection, sleep and wake, charging, peripheral access and the complete shift workflow.

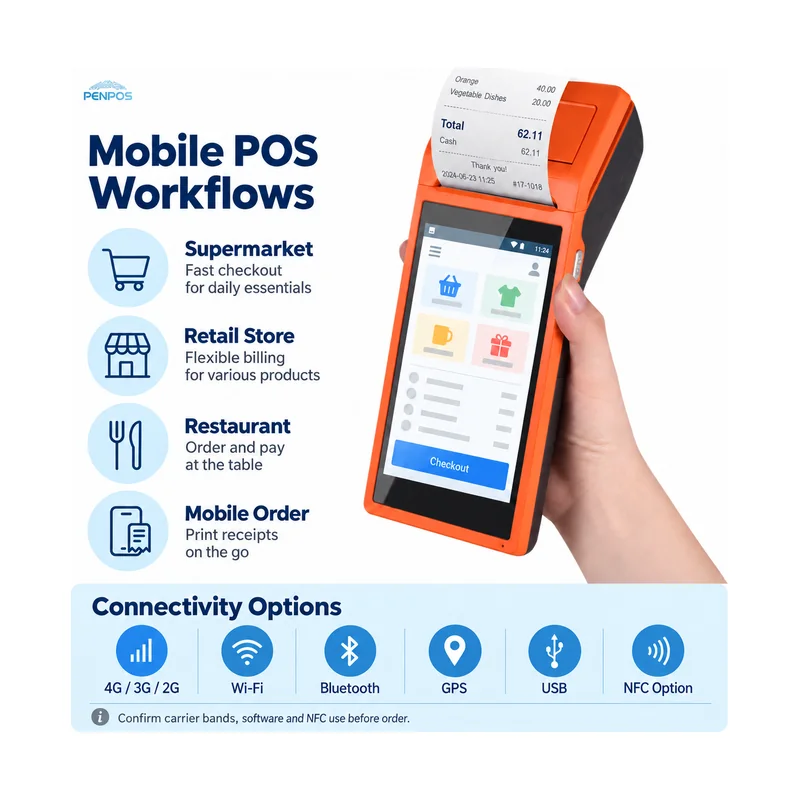

Application Scenarios
- Mobile retail checkout and queue-busting with compatible POS software and receipt format.
- Restaurant tableside ordering, bill review and compact receipt printing.
- Pop-up stores, exhibitions and market stalls requiring a portable POS workstation.
- Assisted selling where staff move between shelves and the checkout counter.
- Field service, delivery or collection workflows that require printed acknowledgements.
- POS software and distributor projects evaluating a compact 58 mm handheld platform.
OEM and ODM Options
PENPOSTECH can review Android image and application deployment, language, cellular-band mapping, Wi-Fi and Bluetooth settings, GPS use, NFC mode, SIM requirement, USB function, printer command set, receipt template, paper roll, enclosure color, startup artwork, approved labels, accessories, charger, plug, carton and manuals. Configuration compatibility, certifications, package contents, MOQ, warranty and delivery schedule require written confirmation.
Who This Product Is For
This platform is intended for POS software companies, retail and restaurant solution providers, importers, distributors, mobile-workforce integrators and OEM buyers. Send the destination country, quantity, application, APK or software requirements, payment workflow, network and carrier, receipt format, daily print volume, NFC purpose, language, branding and compliance needs. PENPOSTECH can then map the device, system image and printer configuration to a controlled sample plan.
Why Choose PENPOSTECH
PENPOSTECH presents the source-verified screen, processor, memory, storage, printer, battery and connectivity references while keeping uncertain items outside the promise. Payment approval, barcode scanning, camera, printer performance, cellular bands, software compatibility, certifications and commercial terms stay tied to the selected configuration and written quotation. This helps buyers compare a realistic 58 mm handheld POS option without confusing it with the site's larger 80 mm mobile printer terminal.
Frequently Asked Questions
Is the 58 mm printer included in the terminal?
The source lists an integrated 58 mm thermal printer. Print width, speed, resolution, cutter, roll capacity, command set and compatible paper must still be confirmed for the ordered configuration.
Can the handheld POS run our Android application?
Android 11 and 12 paths are listed, but application compatibility depends on the APK, API level, services, permissions, drivers and system image. Provide a test build and requirements for sample validation.
Does NFC mean it accepts contactless bank cards?
No universal payment acceptance is claimed. NFC mode, secure element, EMV approval, PCI scope, acquirer, software and regional certification must be confirmed for the intended payment project.
Will the 4G connection work in our country?
The listing references cellular communication, but the exact bands and carrier compatibility must be checked against the destination country and operator before quotation.
How long does the 5000mAh battery run?
Runtime depends on screen brightness, network signal, radio use, application workload and print frequency. A sample test with the real shift workflow is required for a useful estimate.
What information is needed for a quotation?
Send destination, quantity, software, Android version, network and carrier, NFC purpose, receipt size, daily print volume, accessories, branding, compliance and target schedule.
Related PENPOSTECH Resources
Request Project Information
Send your destination, quantity, POS application, Android requirement, cellular carrier, NFC purpose, receipt artwork, daily print volume, accessories, branding, compliance and schedule. PENPOSTECH will confirm a compatible handheld POS configuration and formal quotation.
