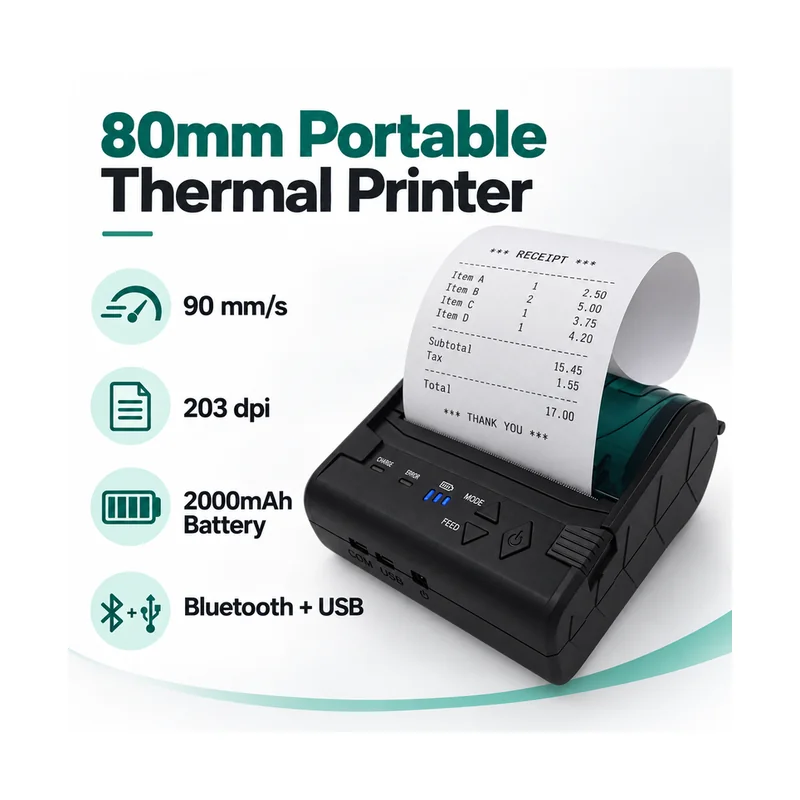

80mm Portable Bluetooth Thermal Receipt Printer: 90mm/s 203dpi USB RS232 ESC/POS Mobile Printer with 2000mAh Battery
This 80mm portable Bluetooth thermal receipt printer combines 90 mm/s direct thermal output, 203 dpi resolution, Bluetooth, USB, RS232, ESC/POS support, and a 7.4 V 2000mAh battery in a supplier-listed 21 x 12 x 6.5 cm enclosure. Its translucent green cover, X-pattern sides, front COM and USB ports, four-button controls, and removable battery distinguish it from PENPOSTECH's smaller portable model. It is intended for mobile POS, delivery, field service, ticketing, and software-integration projects. Paper, battery runtime, connector, driver, application, and command compatibility require confirmation.
Key Advantages
- Maximum 80 mm thermal paper format for portable receipt and ticket workflows.
- 90 mm/s supplier-listed print speed with 203 dpi resolution.
- Bluetooth, USB, and RS232 connectivity listed for mobile and wired integration.
- 7.4 V 2000mAh removable battery configuration shown for field use.
- ESC/POS command and SDK availability listed for software evaluation.
- Distinct green-cover 21 x 12 x 6.5 cm enclosure with easy paper access.
Technical Specifications
| Printing Method | Direct thermal receipt printing |
|---|---|
| Paper Width | Maximum 80 mm (3.15 inch) thermal paper |
| Print Speed | 90 mm/s listed black print speed |
| Resolution | 203 dpi (8 dots/mm) |
| Interface | Bluetooth, USB, and RS232 are listed; exact connector set and Bluetooth version require order confirmation |
| Battery | 7.4 V DC 2000mAh battery; the gallery shows a removable external battery module |
| Print Command | ESC/POS command support is listed; command coverage requires integration confirmation |
| Dimensions | 21 x 12 x 6.5 cm supplier-listed product dimensions |
| Operating Systems | Android, iOS, and Windows are listed; OS versions, apps, drivers, and interface mapping require testing |
| Printer Life | 100 km supplier-listed printer-life reference; test conditions and covered component require confirmation |
| Sdk | Free SDK availability is listed; platforms, APIs, sample code, and maintenance status require confirmation |
| Color | Black enclosure with a dark translucent green paper cover |
| Oem Odm | Approved logo, enclosure marking, interface, battery, charger, firmware, SDK, paper specification, plug, packaging, accessories, and order configuration are subject to written project confirmation |
Product Features

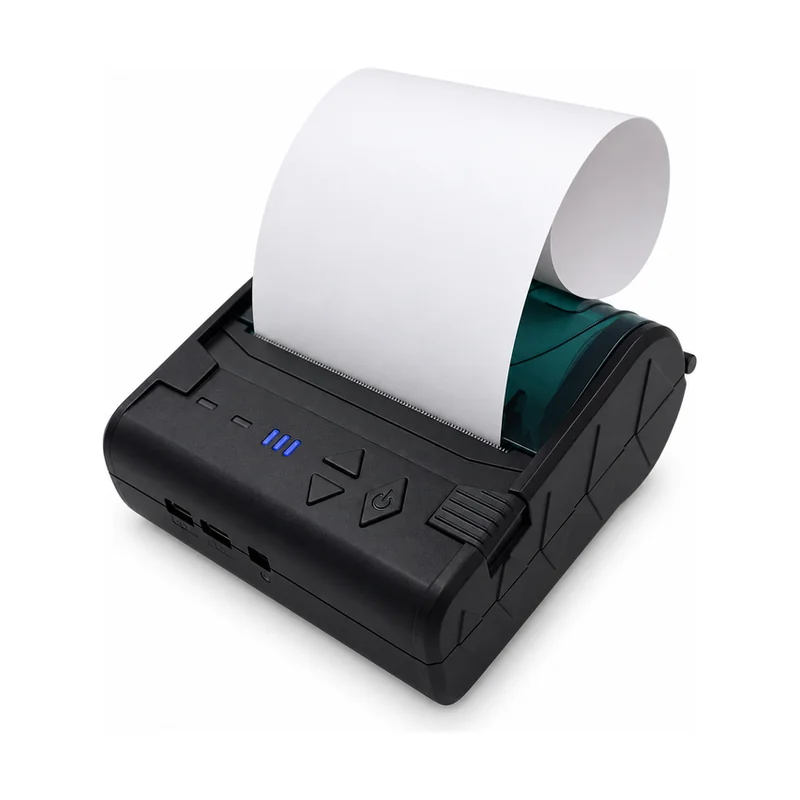

- The enclosure creates a separate product identity. It uses a black body, large dark-green translucent roll cover, angular X-pattern side panels, four top control buttons, three battery indicators, a textured right-side latch, and front-facing COM and USB ports. The supplier lists dimensions of 21 x 12 x 6.5 cm. This is larger and structurally different from the existing 109 x 128 x 55 mm MTP-3 color-trim shell, so the page targets buyers who need serial connectivity and a removable-battery design rather than duplicating the smaller model.
- A maximum 80 mm or 3.15-inch paper size is listed. The available source does not establish printable width, roll diameter, core, thickness, sensing method, or whether every configuration supports labels as well as receipt paper. Buyers should provide the intended thermal roll specification or a physical sample. This is especially important for preprinted paper, thick media, unusual cores, barcode layouts, or deployments where paper is sourced locally in multiple countries.
- The supplier lists a black print speed of 90 mm/s and 203 dpi or 8 dots/mm resolution. This combination is positioned for mobile receipts, field tickets, queue numbers, delivery records, and moderate portable workloads rather than high-volume countertop queues. Real output depends on receipt length, print density, graphics, barcode complexity, paper sensitivity, battery level, wireless conditions, driver settings, and application behavior. Sample approval should use the buyer's actual template and barcode scanner.

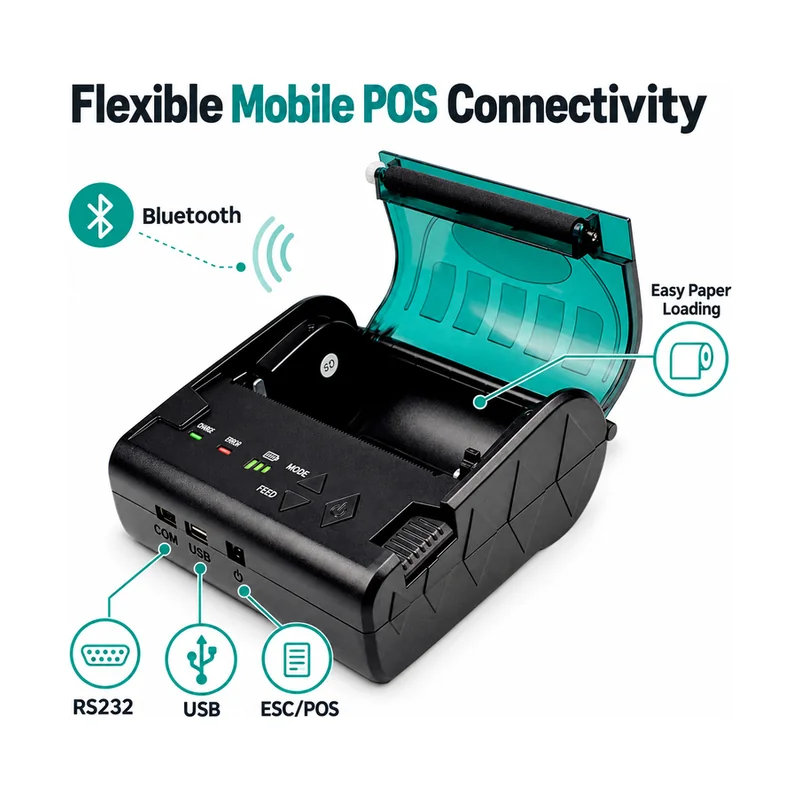

- Bluetooth, USB, and RS232 are listed. Bluetooth supports mobile placement, USB provides a wired path, and RS232 can serve legacy POS or industrial host projects when electrical and command requirements match. The source does not identify the Bluetooth version, USB connector role, RS232 pinout, serial voltage, baud-rate range, cable, or whether all interfaces are installed together. The required connection set should therefore be written into the quotation and verified on a sample.
- ESC/POS command support is listed together with Android, iOS, and Windows compatibility. These statements are useful starting points, but they do not guarantee operation with every OS version, processor, app, driver, Bluetooth profile, serial adapter, code page, barcode type, image format, or proprietary POS platform. Software teams should provide the host device, OS version, application, connection method, language, command requirements, and test receipt before approving volume production.

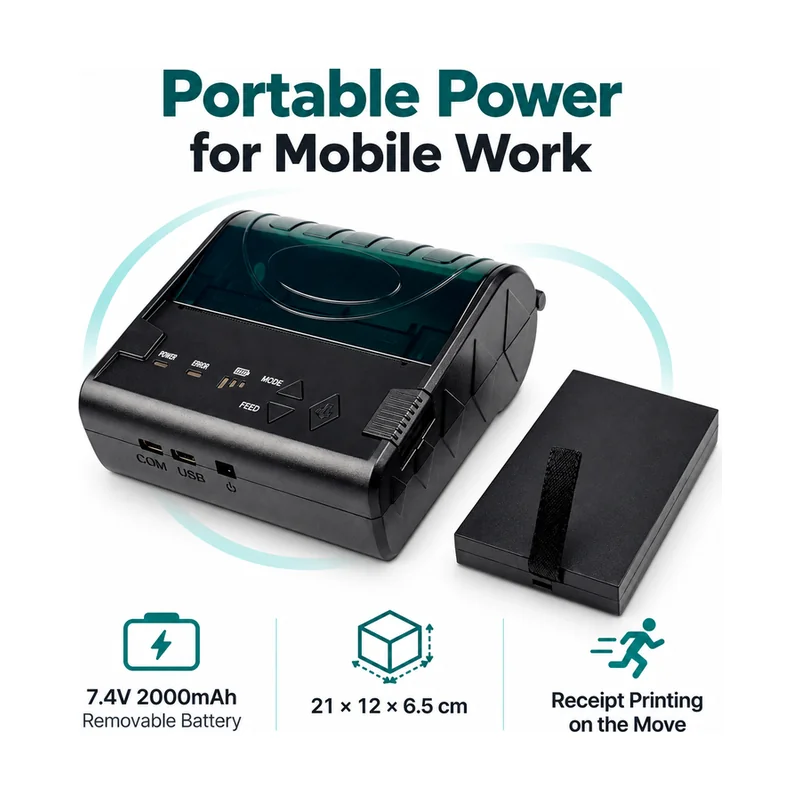

- The source lists a 7.4 V DC 2000mAh battery, and the gallery shows a separate removable battery module. Battery runtime, standby time, charging time, cycle life, cell supplier, connector, adapter input, operating temperature, and replacement availability are not confirmed. Mobile-project buyers should describe the expected shift length, receipts per day, print density, wireless usage, charging environment, spare-battery plan, and local plug standard so the complete power configuration can be reviewed.
- Free SDK availability is listed. The exact package, supported platforms, APIs, sample code, documentation language, command coverage, update policy, and technical support scope require confirmation. SDK buyers should specify the operating system, development language, hardware architecture, Bluetooth or wired path, receipt language, image and barcode requirements, and deployment quantity. Integration should be validated with the intended application and production-like device settings before rollout.
Application Scenarios
- Mobile retail and pop-up checkout counters printing 80 mm transaction receipts.
- Delivery, logistics, and field-service teams producing portable tickets and records.
- Restaurant table-side, takeaway, and temporary counter receipt printing.
- Queue, parking, event, and service workflows requiring battery-powered output.
- Legacy or industrial host projects evaluating an RS232 connection.
- POS software companies testing Bluetooth, USB, ESC/POS, and SDK integration.
OEM and ODM Options
For OEM and ODM projects, PENPOSTECH can coordinate confirmation of approved logo artwork and position, translucent-cover color, enclosure marking, Bluetooth, USB and RS232 configuration, battery and charger, plug, firmware, ESC/POS commands, SDK package, paper specification, accessories, manual, packaging, and carton artwork. All public images for this page were rebuilt without supplier branding, marketplace marks, original receipt identity, device-brand screens, Bluetooth addresses, watermarks, or battery labels. Branding, certification, sample approval, MOQ, warranty, lead time, runtime, package contents, and software compatibility require written confirmation for the exact order.
Who This Product Is For
This model is intended for mobile POS distributors, delivery and field-service integrators, retail hardware suppliers, POS software companies, and OEM buyers. Purchasing teams should confirm quantity, destination, paper roll, enclosure color, interface set, battery, charger, plug, spare-battery need, accessories, packaging, and schedule. Technical teams should confirm the host device, OS version, app, Bluetooth workflow, USB role, RS232 pinout and baud rate, ESC/POS commands, SDK, code page, receipt language, barcode formats, and real print template. Send these details for a configuration and sample review.
Why Choose PENPOSTECH
PENPOSTECH presents this green-cover platform as a distinct product entity rather than relying on synonym changes. Its 21 x 12 x 6.5 cm shell, front COM and USB ports, four-button layout, removable battery, and RS232 option separate it from the smaller 90 mm/s MTP-3 model. Confirmed source facts are separated from unverified paper, runtime, connector, compatibility, certification, package, and commercial claims. Marketplace price, MOQ, warranty, reviews, and delivery promises are not converted into PENPOSTECH commitments.
Frequently Asked Questions
Which connections are available?
Bluetooth, USB, and RS232 are listed. The exact installed combination, connector role, Bluetooth version, serial pinout, voltage, baud rate, and cable should be confirmed for the ordered configuration.
What paper does the printer use?
The source lists a maximum 80 mm thermal paper size. Exact printable width, roll diameter, core, thickness, sensing method, and label support require confirmation against the buyer's paper.
How long does the 2000mAh battery operate?
A 7.4 V 2000mAh battery is confirmed, and the gallery shows a removable module. Runtime and charging time are not confirmed and depend on workload, density, wireless use, standby pattern, temperature, and battery condition.
Does it work with Android, iOS, and Windows?
Those operating-system families and ESC/POS support are supplier-listed, but app, driver, OS-version, connection, command, language, and barcode compatibility must be tested for the intended project.
What information is needed for a quotation?
Send the quantity, destination, paper roll, host device, OS and app, Bluetooth, USB or RS232 requirement, serial settings, receipt language, daily volume, battery expectation, charger plug, logo, packaging, and schedule.
