15.6 Inch J1900 RK3568 Dual OS POS System: FHD Touch, 2GB/4GB, 32GB-128GB, Optional Customer Display
This J1900 RK3568 dual OS POS system is a configurable 15.6-inch all-in-one checkout platform with a 1920 x 1080 display, 350 cd/m2 supplier-listed brightness, and multi-point capacitive touch. Source data references Intel J1900 and RK3568 processor choices, Windows and Android support, 2GB/4GB memory, 32GB-128GB storage options, and optional customer-display formats. Final compatible combinations are confirmed before quotation.
Key Advantages
- 15.6-inch 1920 x 1080 main display with 350 cd/m2 supplier-listed brightness.
- Multi-point capacitive touch and adjustable viewing angle.
- Intel J1900 quad-core 2.0GHz and RK3568 quad-core processor references.
- Windows, Android, and Windows 7/8/10 support listed by the supplier.
- 2GB/4GB memory and 32GB, 64GB, or optional 128GB storage references.
- Optional 11.6-inch or 15.6-inch secondary display and customer-facing modules.
Technical Specifications
| Model | H-POS1563 |
|---|---|
| Display | 15.6-inch LCD main display |
| Resolution | 1920 x 1080 |
| Brightness | 350 cd/m2 supplier-listed brightness |
| Touchscreen | Multi-point capacitive touchscreen |
| Processor | Supplier fields list Intel J1900 quad-core 2.0GHz and RK3568 quad-core processor references; final processor-to-OS combination requires confirmation |
| Memory Storage | 2GB or 4GB memory supplier-listed; separate structured field lists 4GB DDR3. Storage field lists 32GB, 64GB SSD, and optional 128GB |
| Operating System | Windows and Android are supplier-listed; Windows 7/8/10 support also appears in the source |
| Secondary Screen | 11.6-inch or 15.6-inch secondary-screen options supplier-listed |
| Optional Modules | Wi-Fi, MSR, VFD, LCD, and LED options are supplier-listed |
| Construction | Plastic housing with white curved stand and black display bezel shown in supplier media |
| Adjustment | Adjustable/rotatable screen angle shown in supplier detail media |
| Interfaces | Side USB ports are visible in supplier media; exact port count, versions, rear I/O, network, serial, audio, and cash-drawer interfaces require confirmation |
| Configuration Options | Main terminal plus optional 11.6/15.6-inch secondary screen, Wi-Fi, MSR, VFD/LCD/LED customer display, receipt printer, cash drawer, keyboard, and other peripherals subject to quotation |
| Oem Odm | Processor, memory, storage, OS image, main and secondary display, wireless module, customer display, interface layout, peripherals, approved logo, labels, plug, cables, packaging, and documentation can be reviewed as project options subject to written confirmation |
Product Features
- The H-POS1563 family uses a 15.6-inch LCD main display with 1920 x 1080 resolution and 350 cd/m2 supplier-listed brightness. Multi-point capacitive touch supports common retail, restaurant, hospitality, and software-integration workflows. The white curved pedestal and black narrow bezel give it a different visual identity from PENPOSTECH's black 15-inch 1024 x 768 terminal. Panel maker, contrast, viewing angle, touch controller, glass treatment, exact dimensions, and weight require confirmation for the chosen configuration.
- Two processor references appear in the source: Intel J1900 quad-core 2.0GHz and Rockchip RK3568 quad-core. The same page lists Windows and Android operating systems plus Windows 7/8/10 support. These facts establish a multi-platform product family, but they do not prove every processor and OS combination is available with every display or interface. PENPOSTECH will confirm the processor, motherboard, OS image, drivers, license, software architecture, and lifecycle before a quotation is finalized.
- Memory and storage are also configurable. Supplier fields list 2GB or 4GB memory, with a separate 4GB DDR3 reference, while storage references include 32GB, 64GB SSD, and optional 128GB. The source labels one storage field as EMMC even though it also mentions SSD, so the final quotation must identify technology, capacity, form factor, endurance, and upgrade path. Buyers should provide POS software size, database workload, browser requirements, and expected service life rather than selecting capacity from a marketplace headline alone.

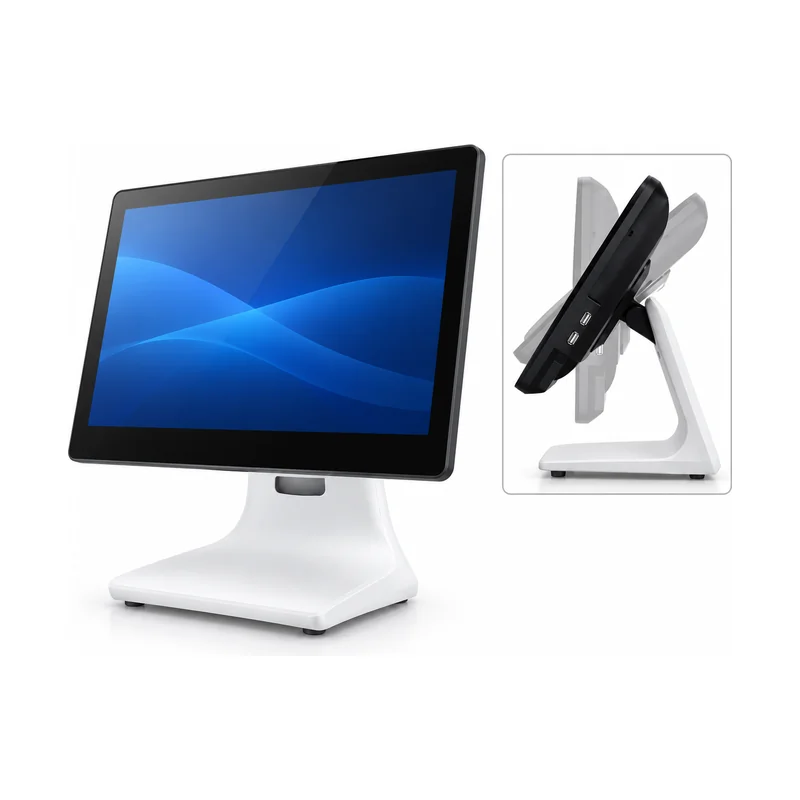

- The display can be tilted for a more suitable operator viewing angle, and supplier media shows side USB access. Exact USB count and generation, LAN speed, COM ports, HDMI or VGA, audio, cash-drawer control, power input, wireless module, and connector location are not fully established by the listing. Send an I/O checklist covering printer, scanner, drawer, scale, payment device, customer display, keyboard, MSR, and network method so PENPOSTECH can confirm the required motherboard and cabling.
- Customer-facing display choices are supplier-listed at 11.6 inches or 15.6 inches. The source also names Wi-Fi, MSR, VFD, LCD, and LED as optional checkout modules. These are configuration references rather than standard inclusions. Screen resolution, mounting position, interface, power, content mode, touch support, card-reader track support, and operating-system compatibility must be specified. This allows a distributor to order a simple single-screen terminal or request a customer-facing checkout solution without forcing unused hardware into every unit.

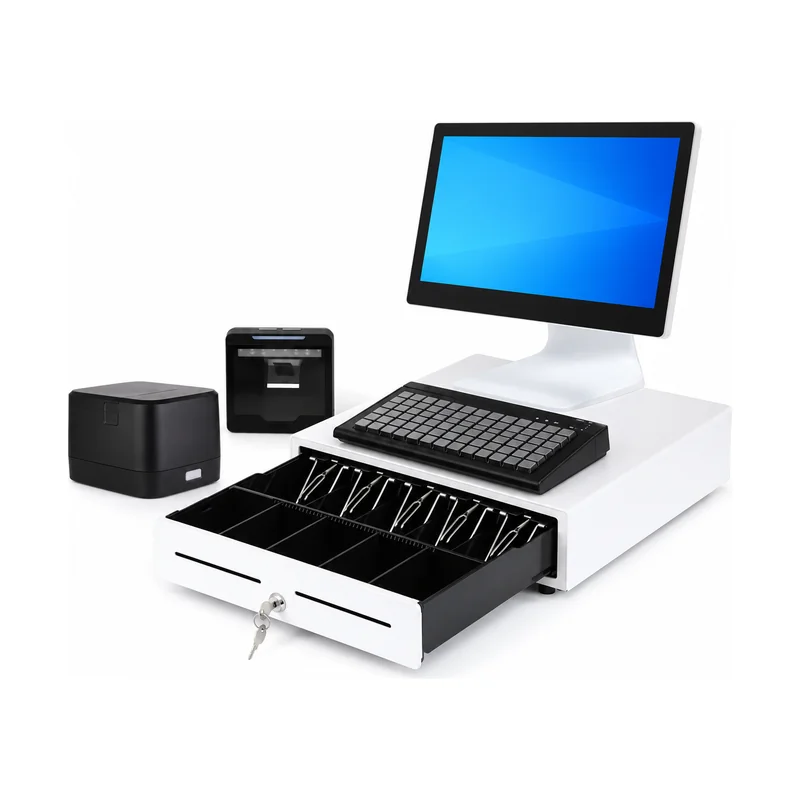

- The source title and hero gallery show a receipt printer and complete counter setup, but structured printer technology, output, media, and scanner fields are marked NA. For that reason, this page does not claim a printer specification or automatic full-set package. Receipt printer, cash drawer, keyboard, scanner, pole display, and other accessories can be added to the request, but their model, interface, command language, paper size, voltage, color, cable, driver, and package contents must be confirmed in the quotation.

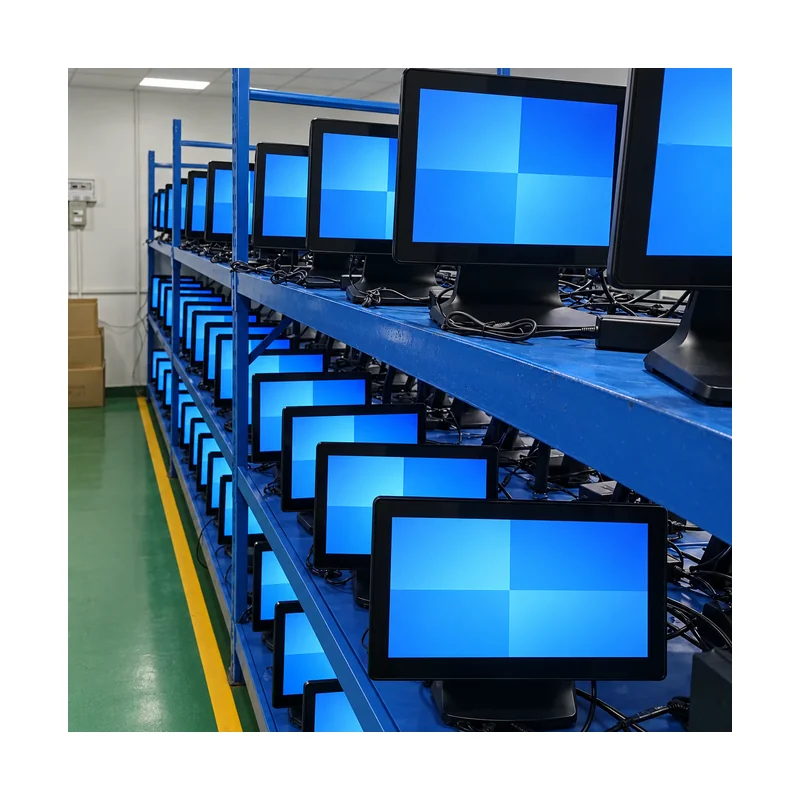

- Supplier-authorized factory media shows rows of terminals undergoing screen and system testing. The published image was rebuilt without software logos, readable diagnostics, supplier identity, or unverifiable production claims. For project acceptance, buyers can request a defined sample-test plan covering display, touch, ports, network, storage, OS image, peripheral compatibility, burn-in duration, appearance, and packaging. The inspection scope, reporting method, sample size, and acceptance criteria should be agreed before mass production.
- For OEM and ODM projects, PENPOSTECH can review processor, RAM, storage, OS image, main and secondary display, wireless module, MSR or customer display, interfaces, peripherals, approved logo, labels, plug, cables, carton, and documentation. Send quantity, destination, business application, software, display arrangement, CPU and memory target, I/O list, accessories, branding, certification, and delivery schedule. PENPOSTECH will return one compatible configuration for approval instead of presenting unsupported options or fixed marketplace terms.
Application Scenarios
- Restaurant, cafe, bakery, and quick-service billing counters.
- Retail shops, supermarkets, and specialty-store checkout.
- Hotel reception, membership, ticketing, and service desks.
- POS software deployment and customer demonstration systems.
- Dual-screen customer-facing checkout and advertising projects.
OEM and ODM Options
PENPOSTECH can coordinate J1900 or RK3568 platform review, memory, storage, Windows or Android image, main and secondary display, wireless module, MSR, VFD/LCD/LED customer display, interfaces, printer, drawer, scanner, keyboard, approved logo, labels, plug, cables, packaging, and documentation. Supplier-authorized images were rebuilt without supplier marks, Windows identity, watermarks, contact details, certification badges, factory-age claims, or fixed commercial promises. Compatibility, documents, sample, MOQ, lead time, warranty, package, and regulatory statements require written confirmation.
Who This Product Is For
This configurable family is intended for POS software companies, system integrators, restaurant and retail equipment distributors, importers, wholesalers, and OEM buyers. Send quantity, destination, application, software and OS, CPU, RAM, storage, main and customer display, required I/O, peripherals, network method, power, branding, certification, packaging, and schedule for a confirmed configuration.
Why Choose PENPOSTECH
PENPOSTECH preserves the verified display, resolution, brightness, touch, processor references, memory, storage, OS, and secondary-screen options while keeping printer details, port layout, certifications, package, MOQ, warranty, and delivery controlled by the final quotation. This keeps the page useful for search without changing company commitments.
Frequently Asked Questions
Can I choose Windows or Android?
Yes. The source lists Windows and Android, with J1900 and RK3568 processor references. The exact processor, OS version, image, drivers, license, and interface combination must be confirmed for the final configuration.
Which memory and storage options are available?
The supplier lists 2GB or 4GB memory and 32GB, 64GB, or optional 128GB storage references. Storage technology and compatible capacity require confirmation because the source mixes eMMC and SSD wording.
Can the terminal use a customer-facing second screen?
The source lists 11.6-inch and 15.6-inch secondary-screen options. Resolution, touch, interface, mount, power, and software mode are confirmed per project.
Are the printer, cash drawer, and keyboard included?
Not automatically. They are shown as configuration examples, but printer specifications are not established in the structured source. Request the required accessories so the quotation can identify exact models and package contents.
Which optional checkout modules can be reviewed?
The supplier lists Wi-Fi, MSR, VFD, LCD, and LED options. PENPOSTECH can also review compatible printer, scanner, drawer, keyboard, customer screen, and cabling requirements.
What information is needed for a quotation?
Send quantity, destination, application, software, OS, CPU, RAM, storage, display layout, ports, peripherals, network, power, branding, packaging, certification, and delivery schedule.
