POS Terminal with Adjustable Customer Display

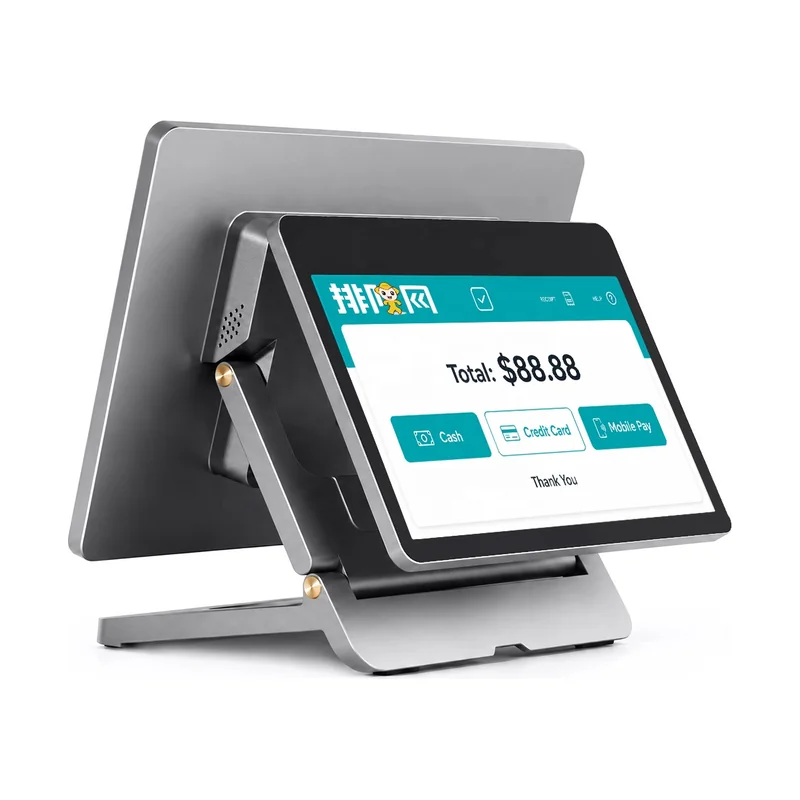

This POS terminal with adjustable customer display combines a 15.6-inch cashier screen with an optional 11.6-inch customer touchscreen in a distinctive silver aluminum-alloy enclosure. Unlike conventional terminals with a fixed rear monitor, the dual-hinge structure lets installers adjust the operator and customer displays separately, including a low customer-facing position for order confirmation or payment interaction. The source model S200D is listed with Intel Core i5 processor options, 8 GB memory, and 128 GB or 256 GB SSD choices. Every project configuration is reviewed before quotation because the Windows version, display resolution, port layout, second screen, branding, and peripherals can vary.
Key Advantages
- Independent display adjustment for cashier ergonomics and customer-facing interaction.
- 15.6-inch main touchscreen with an optional 11.6-inch customer touchscreen.
- 10-point capacitive multi-touch for direct POS software operation.
- Aluminum-alloy enclosure with a distinctive dual-hinge countertop form.
- Windows platform with Core i5, 8 GB RAM, and SSD configuration choices.
- Wired and wireless connectivity options for common checkout peripherals and networks.
Technical Specifications
| Model | S200D |
|---|---|
| Screen Size | 15.6-inch main display; 11.6-inch customer display option |
| Screen Configuration | Single-screen or dual-screen configuration |
| Touchscreen | 10-point capacitive multi-touch |
| Resolution | 1366 x 768 or 1920 x 1080 options |
| Cpu | 4th-generation or 5th-generation Intel Core i5 options |
| Ram | 8 GB |
| Storage | 128 GB or 256 GB SSD options |
| Operating System | Windows; final version and licensing require project confirmation |
| Interfaces | RJ45, USB 2.0, VGA, and Type-C are listed; the supplier also lists an unspecified HD interface |
| Wireless Options | Wi-Fi and Bluetooth |
| Material | Aluminum alloy |
| Lan | 1000M LAN |
| Speaker | Built-in speaker |
| Compatible Peripherals | Barcode scanner, printer, and cash drawer |
| Oem Odm | Configuration and branding options are subject to project confirmation |
Product Features

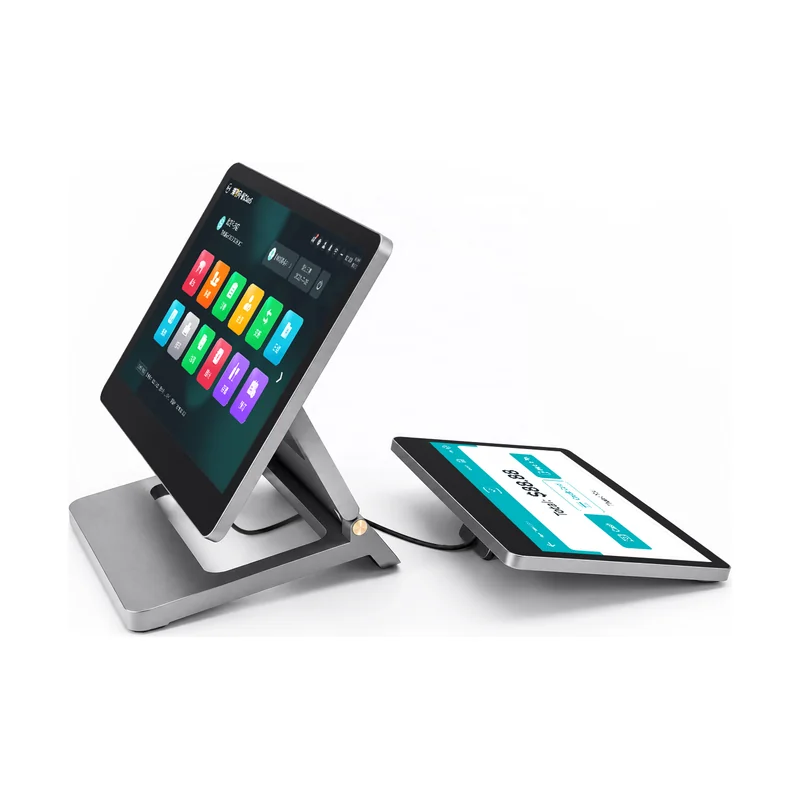

- The dual-hinge frame separates the viewing-angle adjustment of the cashier display from the customer display. This gives counter designers more flexibility than a fixed rear screen and allows the customer panel to sit lower when the checkout workflow benefits from direct interaction.

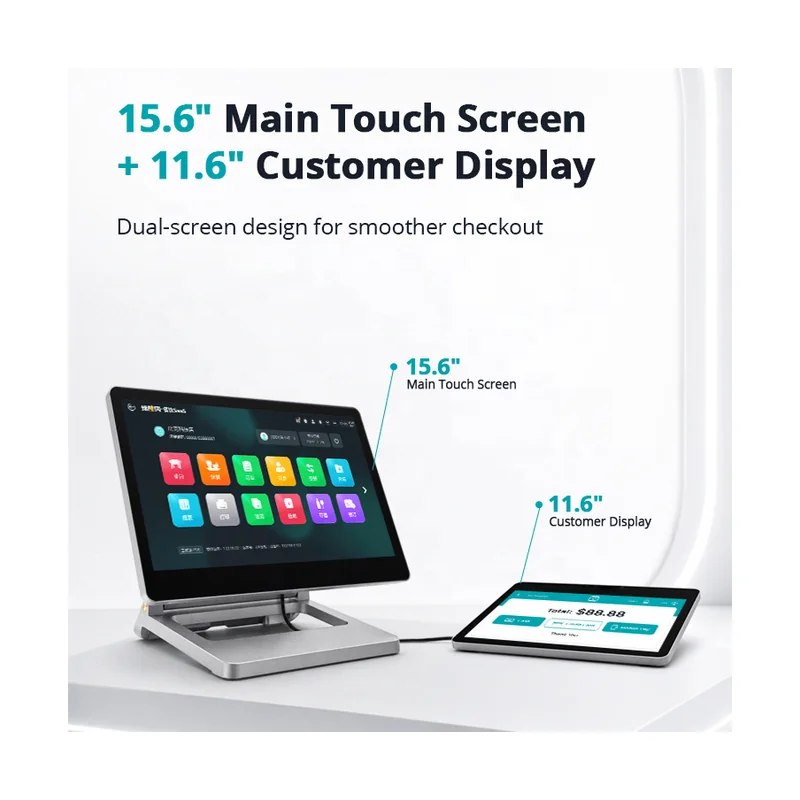

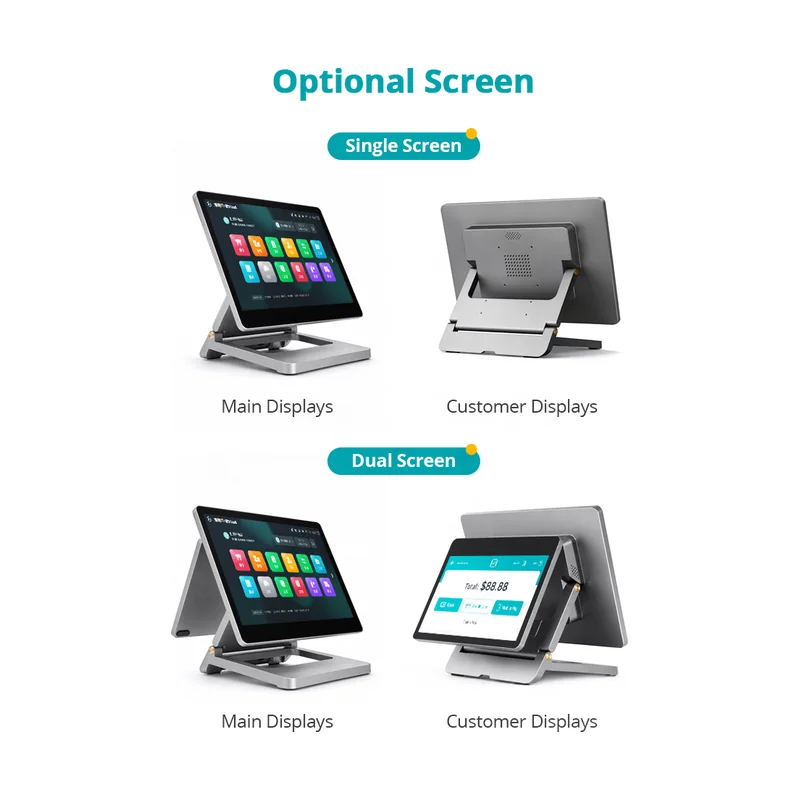

- The source configuration uses a 15.6-inch main display and offers an 11.6-inch customer display. A single-screen version is also shown. The exact display combination and whether both panels require touch input should be written into the project specification.
- The supplier lists 10-point capacitive multi-touch and resolution options of 1366 x 768 or 1920 x 1080. Resolution allocation can vary by screen configuration, so it is confirmed against the selected main and customer panels before quotation.
- Processor choices shown for model S200D include 4th-generation and 5th-generation Intel Core i5 platforms. The listed memory is 8 GB, with 128 GB and 256 GB SSD choices. Software teams should provide their application workload and Windows requirements for compatibility review.
- RJ45, USB 2.0, VGA, and Type-C are listed on the source page, together with an interface described only as HD. Port quantities, connector placement, and the exact HD interface must be confirmed from the selected motherboard before an order is finalized.
- Wi-Fi, Bluetooth, 1000M LAN, and a built-in speaker are listed for this hardware family. Barcode scanners, receipt printers, and cash drawers can be discussed as external peripherals rather than assumed standard accessories.
Application Scenarios
- Retail counters where customers need to review items, totals, or loyalty information on a separate touch display.
- Restaurants and cafes using cashier software plus a customer-facing order-confirmation screen.
- Supermarkets and specialty stores connecting a barcode scanner, receipt printer, and cash drawer.
- POS software demonstrations and pilot installations that need a visually distinctive metal terminal.
- Distributor or system-integrator projects requiring a single-screen base model and a dual-touch upgrade path.
OEM and ODM Options
For OEM and ODM projects, PENPOSTECH can coordinate configuration review around the screen combination, Windows environment, processor, memory, SSD capacity, port requirements, wireless connectivity, logo placement, packaging, and external peripherals. Availability can change by motherboard and production batch. Certification, warranty, MOQ, delivery time, Windows licensing, and branding methods are not inferred from the marketplace listing and require written confirmation for the selected project.
Who This Product Is For
This model is suited to POS software companies, system integrators, importers, distributors, retail project contractors, and restaurant technology providers. Software companies can evaluate the adjustable customer display as a second interaction surface. Integrators can use the metal dual-hinge enclosure where counter appearance and screen positioning matter. Distributors can offer the single-screen and dual-screen forms as separate configurations. To prepare an accurate recommendation, provide the destination country, software workload, Windows version, required screen functions, port list, peripherals, expected quantity, and branding requirements.
Why Choose PENPOSTECH
PENPOSTECH treats the S200D platform as a configurable B2B hardware project rather than copying a marketplace offer. We separate supplier-listed options from the configuration that will be quoted, confirm ambiguous items such as the display resolution mapping and port layout, and keep certification and commercial terms outside the published specification until documents and project conditions are available. This approach helps buyers compare the shell, screen arrangement, computing platform, and peripheral plan without turning optional features into unsupported promises.
Frequently Asked Questions
Are both screens touch-enabled?
The listing presents the product as a dual-touch POS system and shows a 15.6-inch main screen with an optional 11.6-inch customer display. Because single-screen and dual-screen versions are available, the touch function of each selected panel should be confirmed in the project specification before quotation.
Can the customer display angle be adjusted?
The product images show a separate hinge structure for the customer-facing display, including an elevated rear position and a low fold-down position. The required installation angle and cable arrangement should be reviewed with the selected screen configuration.
Which Windows version is included?
The source page identifies the platform as Windows but does not provide enough verified licensing detail for PENPOSTECH to promise a specific edition on this page. Please share the required Windows version and language so the operating-system image and license arrangement can be confirmed.
What processor and storage options are available?
The supplier lists 4th-generation and 5th-generation Intel Core i5 options, 8 GB RAM, and 128 GB or 256 GB SSD choices. The final motherboard, processor, memory, storage, and operating-system combination is confirmed together for each project.
Can we add our logo and custom packaging?
Logo placement and packaging can be reviewed for an OEM or ODM project. Share the logo artwork, placement, packaging format, destination market, and quantity. The method, MOQ, cost, and schedule require production confirmation.
What do you need for a quotation?
Please provide the destination country, estimated quantity, single-screen or dual-screen requirement, touch requirement for each screen, Windows version, software workload, required ports, peripherals, and branding needs. PENPOSTECH will then confirm a project-specific configuration and commercial terms.
Related PENPOSTECH Resources
Request Project Information
Send your target country, quantity, Windows requirement, POS software workload, preferred screen configuration, required ports, and peripheral list. We will confirm the available S200D hardware combination and prepare a project-specific recommendation or sample quotation.
