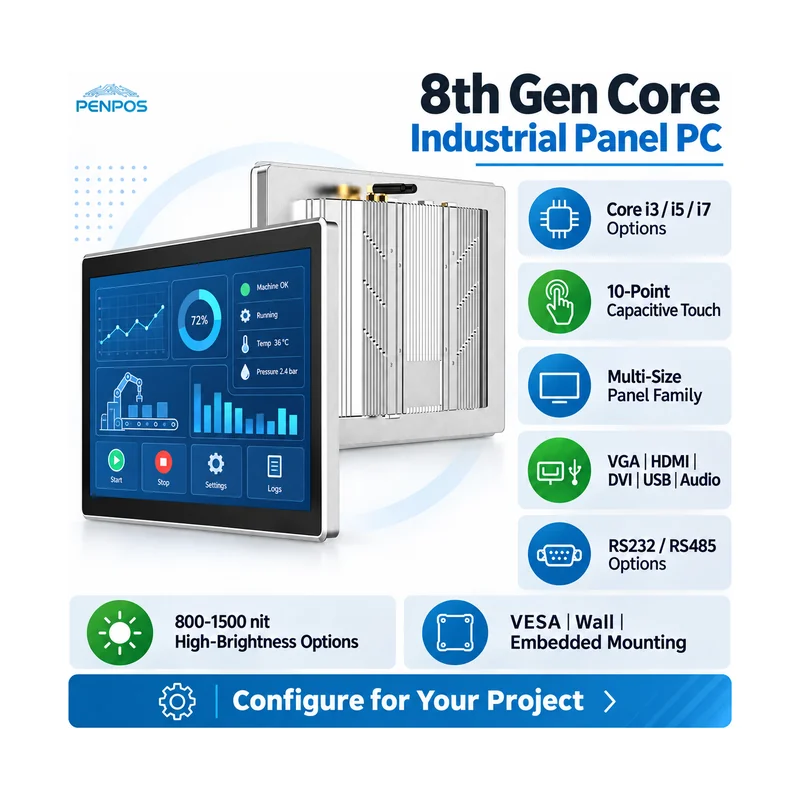

8th Gen Industrial Panel PC with Intel Core i3/i5/i7: Multi-Size 10-Point Touch, 1500-Nit Option, VESA & Embedded Mounting
This 8th Gen industrial panel PC is an HMI family. It combines Intel Core i3/i5/i7 options with ten-point capacitive touch, panel sizes, 800-1500 nit brightness, and wall, VESA, open-frame, or embedded mounting. PENPOSTECH confirms the panel, processor, memory, storage, I/O, power, protection scope, and operating system before quotation.
Key Advantages
- Intel 8th generation Core i3, i5, and i7 platform choices for different workloads.
- Ten-point capacitive touch for operator interfaces and multi-touch HMI software.
- Configurable display family covering compact, standard, and widescreen formats.
- Supplier-listed 800, 1000, 1200, and 1500 nit high-brightness options.
- VGA, HDMI, DVI, USB, audio, RS232, and RS485 interface families.
- VESA, wall, open-frame, and embedded installation paths for equipment integration.
Technical Specifications
| Product Type Reference | CPT-070P-GBC3008 |
|---|---|
| Processor Family | Intel 8th generation Core i3, Core i5, and Core i7 platform options; exact processor SKU, chipset, cooling limit, and board compatibility require confirmation |
| Screen Sizes | Supplier structured data lists a configurable family including 7, 10.4, 12.1, 13.3, 15, 15.6, 17, 18.5, 19, 21.5, 23.8, and 32-inch references; exact availability and processor-board compatibility vary |
| Display Mapping | Supplier detail media presents size-dependent 4:3, 5:4, 16:9, and 16:10 display options with resolutions varying by panel size; final panel code and resolution require confirmation |
| Touchscreen | Ten-point capacitive touchscreen |
| Brightness Options | Custom brightness references of 800, 1000, 1200, and 1500 nit; standard-detail media also shows lower panel brightness depending on size |
| Interface Family | VGA, HDMI, USB, DVI, audio, RS232, and RS485 are supplier-listed interface families; exact counts, versions, serial modes, pinout, and placement depend on configuration |
| Mounting Options | Wall mounting, VESA, open-frame, and embedded installation references; supplier media also illustrates arm and folding-stand options |
| Construction | Silver metal frame with rear aluminum-alloy fin structure for passive heat dissipation |
| Surface Treatment | Supplier description references sunlight-readable, anti-glare, and anti-UV customization; exact optical stack and performance require project confirmation |
| Oem Odm | Screen size, resolution, brightness, touch stack, processor class, RAM, storage, operating system image, interfaces, mounting, power, frame finish, approved corner branding, labels, accessories, and packaging can be reviewed as project options subject to written confirmation |
Product Features
- The family uses Intel 8th generation Core i3, Core i5, and Core i7 options for different HMI workloads. The source does not identify every processor SKU, chipset, TDP, memory limit, storage interface, or graphics capability. Send the software load, connected devices, environment, lifecycle target, and quantity so PENPOSTECH can verify the board and thermal design before quotation.
- The source presents a multi-size family instead of one mandatory screen, covering compact panels, industrial 4:3 and 5:4 formats, and widescreen 16:9 and 16:10 options. Resolution and mechanical dimensions change by size. PENPOSTECH will confirm active area, external dimensions, cutout, rear depth, resolution, connector clearance, and drawing before cabinet production.
- Ten-point capacitive touch is listed for the family. This supports operator dashboards, machine settings, gesture-driven industrial software, data visualization, and interactive kiosks when the application is designed for PCAP input. The reference does not establish the same cover glass, touch controller, bonding, glove performance, wet-touch behavior, impact resistance, or stylus response for every size. Buyers should state whether operators use bare fingers, gloves, water exposure, cleaning chemicals, or a stylus. Those conditions determine the appropriate glass, controller tuning, optical treatment, and sample acceptance plan.
- Brightness can be customized for the installation. The structured source lists 800, 1000, 1200, and 1500 nit options, while the panel chart also shows lower standard brightness references for several sizes. High brightness is therefore an option, not a universal baseline. Outdoor and sunlit projects should specify target luminance, viewing direction, working hours, ambient temperature, dimming method, anti-glare requirement, UV exposure, and power budget. PENPOSTECH will confirm the available panel, backlight, optical stack, heat management, and expected visibility for the chosen screen size instead of applying one brightness claim to the whole family.
- Supplier-listed interface families include VGA, HDMI, DVI, USB, audio, RS232, and RS485. These options support display integration, touch communication, serial devices, industrial controllers, scanners, sensors, and external peripherals. Exact port quantity, connector type, USB generation, LAN requirement, serial electrical mode, pin definition, isolation, expansion, and connector location depend on the selected motherboard and rear enclosure. Integrators should send a complete I/O checklist and cable-exit direction. The approved quotation and connector drawing will define the delivered configuration, and a sample should be used for electrical and software validation.
- Installation references include wall mounting, VESA, open-frame, and embedded integration. Supplier media also illustrates monitor arms and folding stands as optional deployment concepts. Final mounting choice affects the front flange, rear depth, bracket, screw pattern, airflow, cable bend radius, service access, and equipment cutout. Send the cabinet drawing, mounting orientation, available rear clearance, vibration conditions, and service method early in the project. PENPOSTECH can then review the appropriate frame and enclosure instead of assuming that one mechanical structure fits every panel and installation style.
- The marketplace title uses IP66 waterproof, dustproof, and explosionproof wording, while another field advertises IP65, IP67, and IP68X customization. Because those claims conflict, this page does not present a fixed protection grade or hazardous-location certification. Buyers requiring washdown, outdoor, dusty, food-processing, chemical, marine, or hazardous-area use must state the protected surface, installation method, exposed connectors, test standard, zone or class, and required documents. PENPOSTECH will review the enclosure, gasket, cable entry, materials, evidence, and certification route for the final configuration before making a contractual claim.
- The silver metal frame and broad finned aluminum rear structure support passive heat dissipation in the illustrated design. Final thermal performance still depends on processor load, panel brightness, storage, power, mounting, airflow, vibration, and ambient temperature. No configuration-specific operating range was validated, so temperature, humidity, ingress, and burn-in requirements must be defined before quotation.
Application Scenarios
- Factory automation, production-line dashboards, and PLC-connected HMI stations.
- Machine operation, recipe control, status display, and equipment diagnostics.
- Process monitoring, data visualization, and industrial software terminals.
- Warehouse, logistics, dispatch, and material-tracking terminals.
- Outdoor or sunlit kiosks using a confirmed high-brightness panel option.
- Embedded control panels, wall-mounted stations, and VESA-mounted displays.
OEM and ODM Options
PENPOSTECH can coordinate panel size and resolution, 800-1500 nit brightness options, cover glass, capacitive touch behavior, Intel Core i3/i5/i7 platform selection, RAM, storage, OS image, display and serial interfaces, mounting structure, power input, frame finish, small corner branding, labels, cables, accessories, and packaging. Compatible combinations, protection evidence, certification, thermal validation, package contents, MOQ, warranty, and delivery schedule require written confirmation.
Who This Product Is For
This family is intended for automation integrators, machine builders, HMI software companies, panel manufacturers, distributors, and OEM buyers. Send quantity, destination, application, display, touch, computing, I/O, mounting, environment, compliance, packaging, and schedule requirements for a compatible proposal.
Why Choose PENPOSTECH
PENPOSTECH separates verified source options from engineering items that still require confirmation. Processor family, touch, size, brightness, interfaces, mounting, and enclosure remain visible; exact configuration and commercial terms stay controlled by the final quotation. Product visuals use a small corner logo while preserving the unbranded machine body.
Frequently Asked Questions
Which 8th generation Intel processor can be selected?
The supplier title lists Core i3, Core i5, and Core i7 options. Exact processor SKU, chipset, memory support, thermal limit, and long-term availability must be confirmed for the selected screen and enclosure.
Which panel sizes and resolutions are available?
The supplier presents a broad multi-size family with size-dependent 4:3, 5:4, 16:9, and 16:10 panels. Send the required size, resolution, cutout, and rear-clearance limits so PENPOSTECH can confirm a compatible drawing.
Can the screen be configured for outdoor visibility?
The source lists 800, 1000, 1200, and 1500 nit customization. Final luminance, anti-glare treatment, UV exposure, dimming, temperature, and power must be confirmed for the chosen panel.
Is the complete unit IP66 or explosionproof?
The marketplace fields contain conflicting protection claims, so PENPOSTECH does not treat them as a fixed rating. Required surface protection, installation, connectors, test standard, hazardous-area classification, and documents must be reviewed for the final configuration.
Which interfaces and mounting methods can be configured?
The source lists VGA, HDMI, DVI, USB, audio, RS232, and RS485 interface families plus wall, VESA, open-frame, and embedded mounting. Exact port layout and mechanical structure require confirmation.
What information is required for a quotation?
Send quantity, destination, application, size, resolution, brightness, touch conditions, software, CPU class, RAM, storage, I/O, serial protocol, power, mounting, environment, protection, certification, branding, packaging, and schedule.
Related PENPOSTECH Resources
Request Project Information
Send your quantity, destination, application, panel size, resolution, brightness, touch conditions, software, Intel processor class, RAM, storage, interface list, serial protocol, power, mounting drawing, operating environment, protection scope, certification, branding, packaging, and schedule. PENPOSTECH will prepare a compatible industrial panel PC configuration and formal quotation.
