J1900 Industrial Panel PC FHD Touchscreen: 15.6 Inch IP65 10-Point Capacitive Touch, 4GB RAM 64GB SSD
This J1900 industrial panel PC FHD touchscreen is a configurable 15.6-inch embedded HMI platform with 1920 x 1080 resolution, ten-point capacitive touch, a supplier-listed 4GB RAM and 64GB SSD baseline, and a silver finned metal rear enclosure. Buyers can select a touch-monitor, Android 11, or Windows 10 configuration instead of being limited to one fixed SKU. Other sizes and project options are confirmed before quotation.
Key Advantages
- 15.6-inch 1920 x 1080 selected configuration with TFT LCD and LED backlight.
- Ten-point capacitive touchscreen for HMI and operator-control projects.
- Intel Celeron J1900 baseline with 4GB RAM and 64GB SSD supplier-listed.
- Touch-monitor, Android 11, and Windows 10 configuration paths.
- Memory and storage choices from 4GB+64GB to 16GB+512GB in the source SKU list.
- VGA, HDMI, USB, RJ45, COM, and audio interfaces subject to final layout confirmation.
Technical Specifications
| Display | 15.6-inch selected screen size; supplier family lists 12.1 to 21.5 inches |
|---|---|
| Resolution | 1920 x 1080 for the selected 15.6-inch SKU; source family lists 1366 x 768 and 1920 x 1080 depending on size |
| Panel | TFT LCD panel, LED backlight, 16:9 aspect ratio, built-in speaker supplier-listed |
| Touchscreen | Capacitive touchscreen with ten-point touch |
| Processor | Intel Celeron J1900 baseline for the Windows industrial panel-PC configuration |
| Memory Storage | 4GB RAM plus 64GB SSD supplier-listed baseline; additional SKU options extend to 16GB RAM and 512GB storage |
| Configuration Options | Touch monitor ZPC215-S111; Android 11 in 4GB+64GB or 8GB+128GB; Windows 10 in 4GB+64GB, 8GB+128GB, 8GB+256GB, or 16GB+512GB |
| Interfaces | VGA, HDMI, USB, RJ45, COM, and audio interfaces are supplier-listed; exact counts, versions, pinout, and placement depend on configuration |
| Brightness | 200-250 cd/m2 standard range; supplier lists customization up to 1500 nit, subject to size and project confirmation |
| Contrast | 1000:1 supplier-listed contrast ratio |
| Protection | IP65 waterproof is stated in the supplier title; protected surface, installation conditions, and configuration-specific evidence require confirmation |
| Construction | Supplier media describes a fully enclosed metal rear cover and aluminum-alloy die-cast construction with integrated fins |
| Mechanical 15 6 | Supplier size chart lists 384 x 234 mm external dimensions, 376 x 226 mm opening, 48 mm thickness, and 75 x 75 / 100 x 100 mm mounting-hole references for the family; drawing confirmation is required |
| Operating System | Android 11 and Windows 10 options are supplier-listed; Windows 7/8/10 also appears in the structured OS field. Exact edition, license, image, drivers, and Linux support require project confirmation |
| Oem Odm | Screen size, panel, brightness, touch method, processor, RAM, storage, OS image, interfaces, mounting, power, logo, labels, accessories, and packaging can be reviewed as project options subject to written confirmation |
Product Features

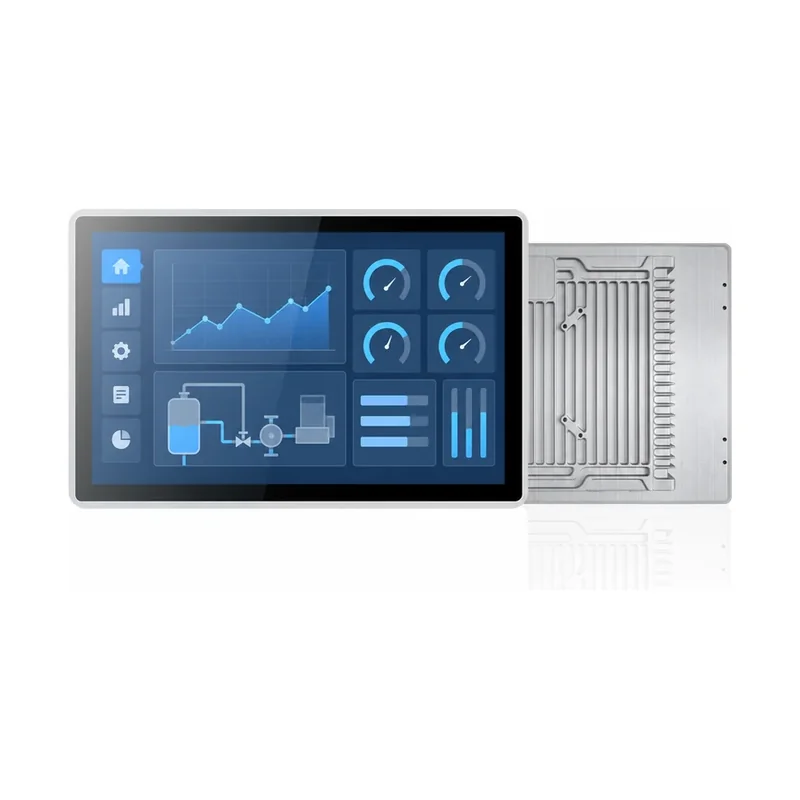

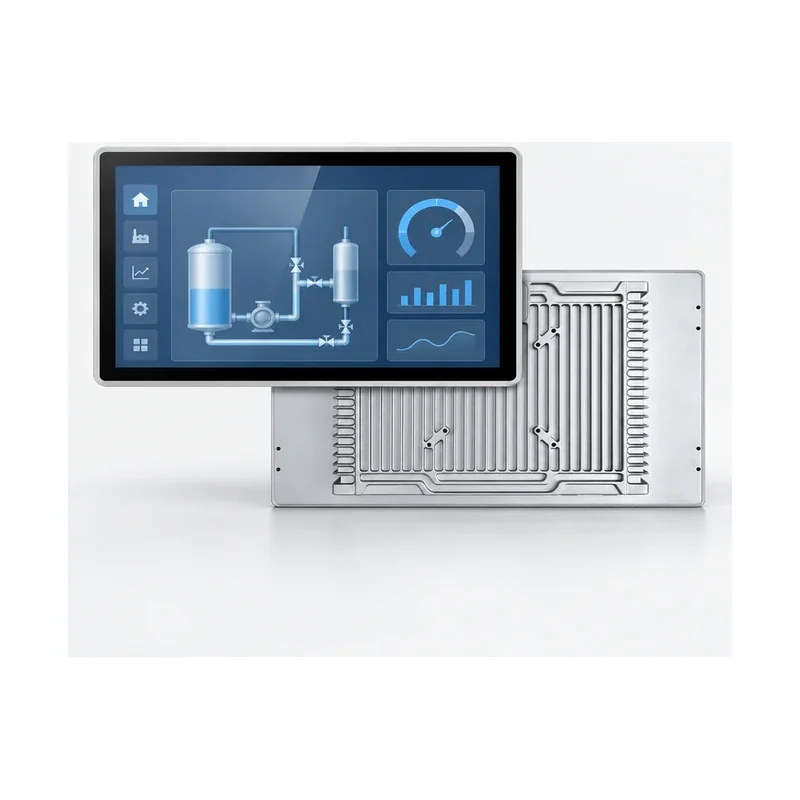

- This page focuses on the source-selected 15.6-inch panel computer rather than repeating PENPOSTECH's broader 10.4-21.5 inch IP65 family. The distinguishing hardware is a silver G-style enclosure with a flush black front bezel and a full cast-metal rear cover formed with integrated cooling fins. The supplier size chart lists a 384 x 234 mm exterior, 376 x 226 mm opening, and 48 mm thickness for the 15.6-inch format. Final drawings, cutout tolerances, mounting holes, cable clearance, and rear depth must be approved before cabinet production.
- The selected display configuration is 15.6 inches with 1920 x 1080 resolution and a 16:9 aspect ratio. The source identifies a TFT LCD panel, LED backlight, 1000:1 contrast ratio, and built-in speaker. Standard brightness is listed in the 200-250 cd/m2 range, while customization up to 1500 nit is supplier-listed. High brightness is not treated as standard: target luminance, panel availability, heat, power, optical treatment, and outdoor viewing requirements must be confirmed for the chosen size.
- Ten-point capacitive touch is identified for the panel-PC configuration. This can support operator interfaces, process dashboards, equipment control, and multi-touch software where the application is designed for PCAP input. Cover-glass thickness, glove behavior, wet-touch behavior, touch controller, USB interface, bonded construction, anti-glare treatment, and stylus response are not established for every option. Buyers should describe the operator, environment, and required gestures so the touch stack can be matched to the project.
- The Windows industrial-computer baseline uses an Intel Celeron J1900 processor with a supplier-listed 4GB RAM and 64GB SSD configuration. The source SKU list also provides Windows 10 combinations of 8GB+128GB, 8GB+256GB, and 16GB+512GB. These options preserve customer choice, but processor board revision, RAM type, SSD form factor, storage endurance, expansion, BIOS functions, and long-term component supply require confirmation. Workload, software architecture, database size, and lifecycle expectations should be supplied before selection.
- The same enclosure family can be discussed as a touch monitor, an Android panel computer, or a Windows panel PC. Supplier SKU options include touch monitor ZPC215-S111, Android 11 with 4GB+64GB or 8GB+128GB, and Windows 10 from 4GB+64GB through 16GB+512GB. These are configuration references rather than an automatic promise that every screen size supports every board. PENPOSTECH will map the selected display, OS, memory, storage, interface, and mounting requirements into one approved quotation.

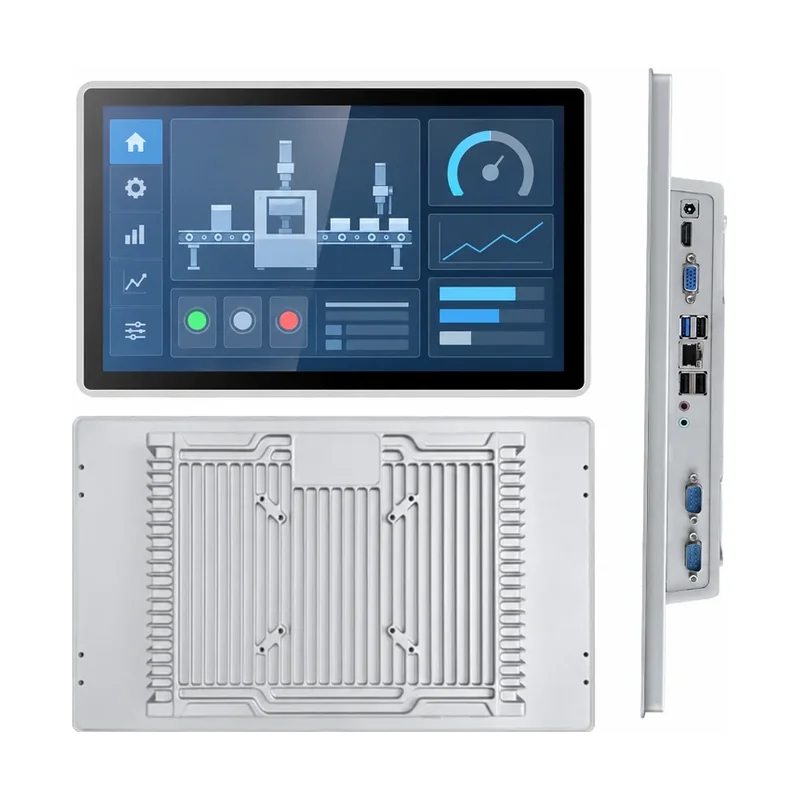

- VGA, HDMI, USB, RJ45, COM, and audio are supplier-listed interface families. The gallery shows a side-mounted connector bank, but exact port count, USB generation, LAN speed, COM electrical mode, pinout, connector position, isolation, GPIO, and expansion vary by motherboard. Integrators should send an I/O checklist, cable direction, serial protocol, network topology, and enclosure-clearance requirement. A confirmed connector drawing and sample should be used for software and mechanical acceptance instead of relying only on gallery images.
- IP65 waterproof is stated in the supplier title, and the supplier media describes a fully enclosed dust- and moisture-resistant metal rear design. This page does not convert that wording into an unconditional whole-unit ingress claim. The protected surface, gasket, connector exposure, mounting method, cable entry, test standard, and report scope must match the ordered configuration. Washdown, outdoor, dusty, food-processing, marine, or regulated projects should provide the required IP scope and request evidence review before ordering.
- Configuration selection is handled as a project workflow: choose screen size and resolution, then touch technology, operating system, processor, memory, storage, brightness, interface layout, mounting, power, branding, and packaging. PENPOSTECH confirms compatible combinations instead of displaying impossible dropdown choices. Once the requirement is complete, the quotation identifies the selected configuration, open points, sample test, documentation, package, lead time, MOQ, and warranty. This approach keeps the customer experience flexible while preventing a marketplace option from becoming an unsupported standard commitment.
Application Scenarios
- Machine HMI and industrial operator-control stations.
- Production-line monitoring and process visualization.
- Equipment data collection and factory information terminals.
- Embedded kiosks and self-service systems.
- Industrial software deployments requiring Windows or Android options.
- Touch-monitor projects that do not require an integrated computer.
OEM and ODM Options
PENPOSTECH can coordinate screen size, resolution, brightness, touch, processor, memory, storage, Android or Windows image, interfaces, mounting, power, frame finish, approved logo, labels, cables, accessories, and packaging. Supplier-authorized images exclude factory logos, software identity, certification symbols, warranty banners, watermarks, and contact details. Compatible combinations, drawings, documents, samples, MOQ, warranty, lead time, and regulatory statements require written confirmation.
Who This Product Is For
This configurable family is intended for automation integrators, machine builders, panel manufacturers, software companies, distributors, and OEM buyers. Send quantity, destination, application, size, resolution, brightness, touch, OS, processor, RAM, storage, I/O, power, mounting, environment, branding, certification, and schedule. PENPOSTECH will return a configuration for approval.
Why Choose PENPOSTECH
PENPOSTECH preserves the verified 15.6-inch FHD, J1900, ten-point touch, memory, storage, interface, and system options while keeping IP scope, power, thermal range, certification, package, MOQ, and warranty controlled by the final quotation. This avoids duplicating the existing generic IP65 panel-PC family or changing company commitments.
Frequently Asked Questions
Can customers choose a different screen size?
Yes. The source family lists 12.1 to 21.5 inches, while this page focuses on the selected 15.6-inch FHD configuration. Exact size, resolution, enclosure, drawing, and availability require confirmation.
Which operating-system and hardware options are available?
The source lists a touch-monitor option, Android 11 in 4GB+64GB or 8GB+128GB, and Windows 10 in 4GB+64GB, 8GB+128GB, 8GB+256GB, or 16GB+512GB. Compatibility is confirmed per screen and motherboard.
Is the complete unit IP65 waterproof?
IP65 is supplier-listed, but the protected surface, mounting, connectors, gasket, installation conditions, and report scope must be confirmed for the final configuration.
Which interfaces are included?
VGA, HDMI, USB, RJ45, COM, and audio are supplier-listed. Exact count, version, speed, serial mode, pinout, and placement depend on the selected motherboard and require a connector drawing.
Can brightness and touch be customized?
The source lists 200-250 cd/m2 as the standard range and customization up to 1500 nit. Capacitive ten-point touch is listed. Final brightness, glass, touch controller, glove use, and wet-touch behavior require confirmation.
What information is needed for a quotation?
Send quantity, destination, size, resolution, brightness, touch method, OS, CPU, RAM, storage, I/O, power, mounting, environment, logo, packaging, certification, and schedule requirements.
