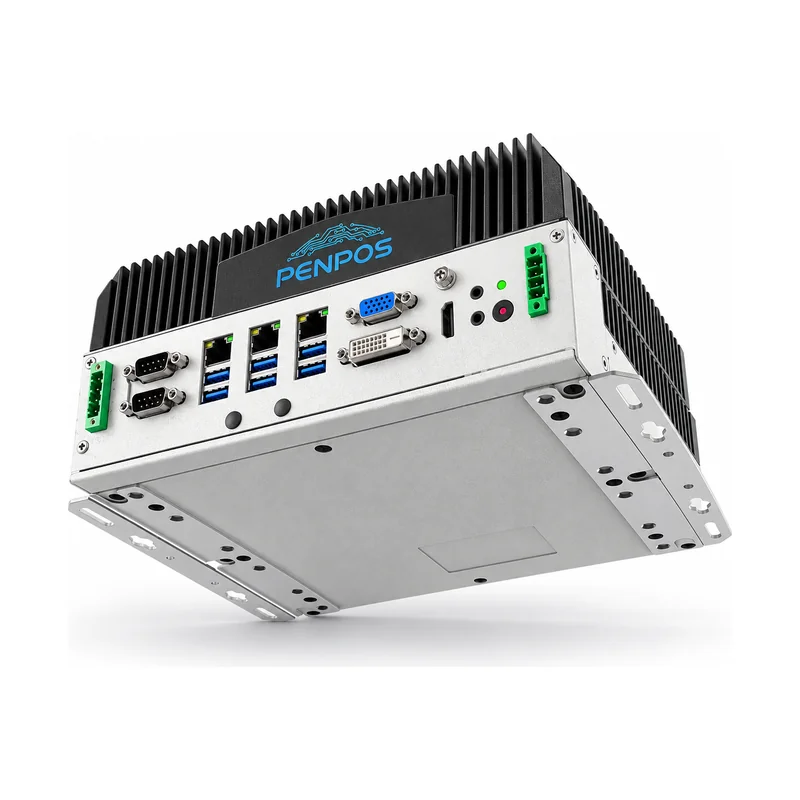

Intel 6th-9th Gen Triple LAN Fanless Industrial PC: 6 USB 3.0, 2 COM, HDMI VGA DVI, 64GB DDR4
This triple LAN fanless industrial PC is a configurable IPC-Y6 embedded edge computer for automation, machine vision, equipment control, monitoring, and network-gateway projects. It combines Intel 6th-9th generation LGA1151 platform options with three Gigabit LAN, six USB 3.0, two COM, HDMI/VGA/DVI-D display outputs, up to 64GB DDR4, and mSATA plus M.2 storage. PENPOS confirms the final CPU, chipset, I/O, power, OS, expansion, and environmental requirements before quotation.
Key Advantages
- Intel 6th-9th generation Core i9/i7/i5/i3, Pentium, and Celeron platform references.
- Three Intel Gigabit LAN controllers for network-dense edge deployments.
- Six USB 3.0 and two configurable COM ports for industrial peripherals.
- HDMI, VGA, and DVI-D outputs for triple-display applications.
- Two DDR4 SODIMM slots up to 64GB, with mSATA and M.2 storage choices.
- Fanless finned enclosure with mounting ears and configurable power, wireless, GPIO, and OS options.
Technical Specifications
| Model | IPC-BOX-Y6-0P |
|---|---|
| Processor | Intel LGA1151 Core i9/i7/i5/i3, Pentium, or Celeron options across 6th, 7th, 8th, and 9th generations; H110 or Q170 chipset depending on configuration |
| Memory | Two DDR4 SODIMM slots supporting 2133/2400/2666/2933MHz references and up to 64GB; marketplace SKU examples include 4GB, 8GB, 16GB, and 32GB |
| Network | Three Gigabit LAN ports using two Intel i210AT and one Intel i219LM controller references |
| Usb Serial | Six USB 3.0 ports and two COM ports; serial protocol options include TTL, RS232, RS422, and RS485, with optional isolation |
| Display Output | One HDMI, one VGA, and one DVI-D output for triple-display deployment |
| Storage | One mSATA and one M.2 M-Key SATA/NVMe x4 2280 reference; optional 2.5-inch or 3.5-inch drive bays; Q170 configuration references RAID 0/1 |
| Expansion | Full-length mini PCIe slot plus M.2 B-Key 3042/3052 expansion references for Wi-Fi, 4G, 5G, or project-specific modules |
| Gpio | Optional 16-channel or 32-channel GPIO with configurable isolation and dry/wet node options |
| Fanless Operation | Closed fanless finned heat-dissipation enclosure and supplier-listed 24-hour continuous-operation positioning |
| Operating System | Windows 7, Windows 10, Windows 11, Linux, and domestic Linux distributions including UOS and Kylin are supplier-listed |
| Power | Pictured configuration labels DC 9-36V input; supplier table also lists 12V, 19V, 24V, 36V, 48V, and 55V options depending on the power interface |
| Watchdog | Hardware watchdog reset reference with configurable restart interval from 1 to 255 seconds |
| Environment | Supplier-listed operating temperature -10°C to 60°C, storage temperature -20°C to 70°C, and operating humidity 5% to 95% non-condensing |
| Dimensions | Approximately 263 x 210 x 57 mm with mounting ears and 230 mm enclosure width without ears |
| Configuration Options | CPU, H110/Q170 chipset, RAM, storage, drive bay, RAID on supported Q170 configuration, COM protocol, isolation, GPIO, wireless module, power input, OS image, PENPOS or approved customer logo, labels, packaging, and documentation can be reviewed per project |
Product Features
- The IPC-BOX-Y6-0P is built around Intel LGA1151 platform choices covering 6th, 7th, 8th, and 9th generation Core i9, i7, i5, i3, Pentium, and Celeron references. H110 and Q170 chipset options appear in the supplier specification. These are platform choices rather than one fixed processor. Buyers should provide the application workload, software architecture, operating system, thermal environment, lifecycle target, and expected deployment quantity so PENPOS can confirm a suitable CPU and board combination.
- Three Gigabit Ethernet ports distinguish this model from simpler dual-LAN industrial computers. The source lists two Intel i210AT controllers and one Intel i219LM controller. This layout can support segmented machine networks, equipment and management connections, industrial gateways, surveillance, and edge-data routing. Network teaming, VLAN, PXE, wake functions, driver support, port isolation, and throughput depend on the selected chipset, OS, and project software, so those items should be included in the technical checklist.
- Peripheral connectivity includes six USB 3.0 ports and two COM ports. Supplier data references TTL, RS232, RS422, and RS485 serial options, plus optional chip or optocoupler isolation. The final protocol, pin definition, termination, isolation voltage, connector mapping, and BIOS behavior must be confirmed before production for connected industrial devices.
- The rear panel provides HDMI, VGA, and DVI-D display outputs for multi-screen industrial control, visualization, monitoring, or signage. The source presents triple-display operation, but supported simultaneous resolution, refresh rate, cloning or extension mode, and driver behavior depend on the final Intel processor and chipset. Send the required number of monitors, connector types, resolution, orientation, and software layout so PENPOS can verify the display plan during sample testing.
- Memory uses two DDR4 SODIMM slots with supplier references to 2133, 2400, 2666, and 2933MHz and a maximum of 64GB. Marketplace configurations show 4GB+128GB, 8GB+256GB, 16GB+512GB, and 32GB+1TB examples, but these are selectable references rather than mandatory bundles. Storage options include mSATA and M.2 M-Key SATA/NVMe x4 2280. Optional 2.5-inch or 3.5-inch drive bays and Q170 RAID 0/1 references require enclosure and board confirmation.
- Expansion references include a full-length mini PCIe slot and an M.2 B-Key 3042/3052 slot for Wi-Fi, 4G, 5G, or project-specific modules. Optional 16-channel or 32-channel GPIO is also listed, with dry or wet nodes, NPN/PNP choices, filtering, isolation, and project-specific output arrangements. Wireless frequency bands, carrier certification, SIM access, antenna placement, GPIO voltage, current, connector, and software API are not universal and must be defined in the quotation.
- The closed finned enclosure uses passive heat dissipation without a conventional internal fan. Supplier media positions the unit for continuous 24-hour operation and lists an operating temperature range of -10°C to 60°C. It also references a 1-255 second watchdog reset function. These figures come from the supplier specification and do not replace project validation. CPU load, ambient airflow, mounting orientation, storage device, input voltage, dust, vibration, and enclosure location should be included in the sample and burn-in plan.

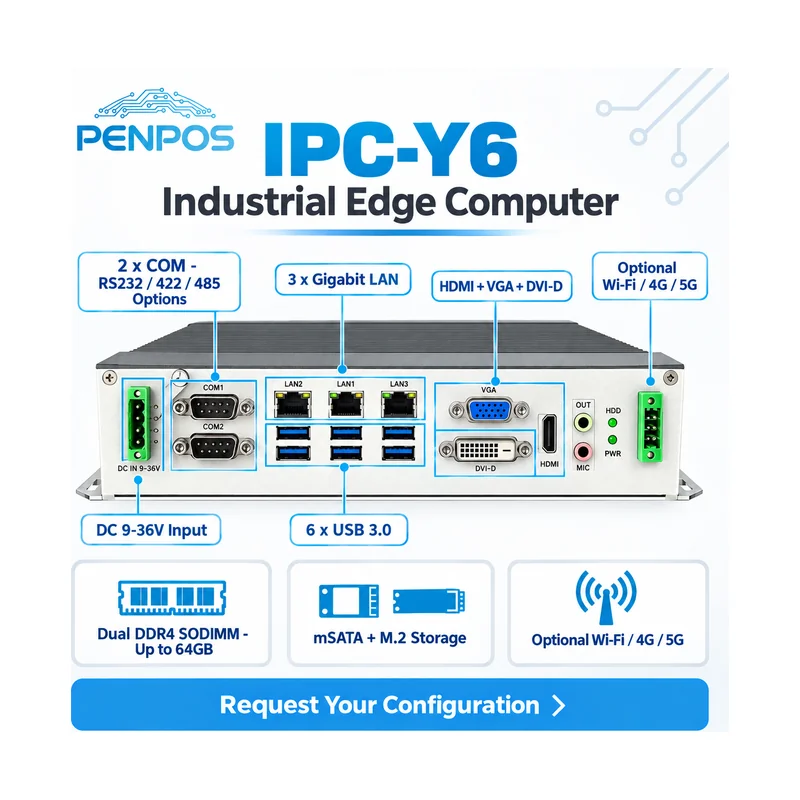

- The pictured unit is approximately 263 x 210 x 57 mm with mounting ears, with a 230 mm enclosure width without the ears. The interface image labels DC 9-36V input, while the specification table also lists 12V, 19V, 24V, 36V, 48V, and 55V options depending on the power design. PENPOS can review Windows 7/10/11, Linux, UOS, or Kylin, approved branding, labels, packaging, and documentation. Send CPU, RAM, storage, LAN, serial, display, GPIO, wireless, power, OS, certification, and schedule requirements for a controlled configuration.
Application Scenarios
- Factory automation, PLC communication, and production-line control.
- Machine-vision inspection and multi-camera edge processing.
- Industrial equipment control, HMI back-end, and data acquisition.
- Smart logistics, warehouse automation, and edge gateways.
- Monitoring rooms, multi-display control, and industrial digital signage.
OEM and ODM Options
PENPOSTECH can coordinate Intel processor and chipset selection, DDR4 memory, mSATA/M.2 or drive-bay storage, three-LAN configuration, COM protocol and isolation, GPIO, watchdog, display outputs, mini PCIe/M.2 wireless expansion, input voltage, OS image, approved PENPOS or customer logo, labels, mounting, packaging, and documentation. Certification, thermal validation, package contents, MOQ, warranty, and delivery schedule require written confirmation for the selected configuration.
Who This Product Is For
This product family is intended for automation integrators, machine builders, machine-vision developers, industrial computer distributors, edge-computing solution providers, and OEM/ODM equipment manufacturers. Send destination, quantity, workload, software, CPU class, chipset, RAM, storage, LAN topology, USB devices, COM protocol, display plan, GPIO, wireless, power, operating environment, OS, branding, compliance, packaging, and schedule for a compatible quotation.
Why Choose PENPOSTECH
PENPOSTECH converts the supplier reference into a controlled industrial configuration. Verified platform, memory, networking, I/O, display, storage, expansion, power, and environmental data remain visible, while CPU-to-chipset compatibility, serial electrical standard, wireless bands, GPIO circuit, certification, package, warranty, MOQ, and schedule are resolved in writing. PENPOS-branded visuals explain the real hardware without exposing supplier identity.
Frequently Asked Questions
Which Intel processors can be configured?
The supplier lists LGA1151 Core i9, i7, i5, i3, Pentium, and Celeron options across Intel 6th-9th generations. Final CPU availability and H110/Q170 compatibility require confirmation.
Does the industrial PC provide three independent LAN ports?
Yes. The source lists three Gigabit LAN ports using two Intel i210AT and one Intel i219LM controller references. Required network features and OS drivers should be confirmed for the project.
Can the two COM ports support RS485 or isolation?
The supplier lists TTL, RS232, RS422, and RS485 choices with optional chip or optocoupler isolation. Protocol, pinout, termination, and isolation details must be specified before quotation.
Which memory and storage configurations are available?
The platform references two DDR4 SODIMM slots up to 64GB, plus mSATA and M.2 storage. Marketplace examples range from 4GB+128GB to 32GB+1TB. Final technology and capacity are confirmed together.
Can it drive three displays?
The unit provides HDMI, VGA, and DVI-D outputs and is presented for triple-display use. Simultaneous resolution and display mode depend on the selected processor, chipset, drivers, and OS.
What is required for an OEM quotation?
Send quantity, destination, software, CPU, chipset, RAM, storage, LAN, USB, COM standard, display, GPIO, wireless, input voltage, OS, environment, branding, compliance, package, and schedule.
Related PENPOSTECH Resources
Request Project Information
Send your CPU, chipset, RAM, storage, LAN topology, USB devices, COM protocol, display outputs, GPIO, wireless, input voltage, operating system, environment, quantity, branding, compliance, packaging, and schedule. PENPOS will prepare a compatible IPC-Y6 configuration and formal quotation.
