21.5 Inch Industrial Tablet PC HMI: J1900/J6412 & Intel Core Options, PCAP or Resistive Touch, VESA & Embedded Mount

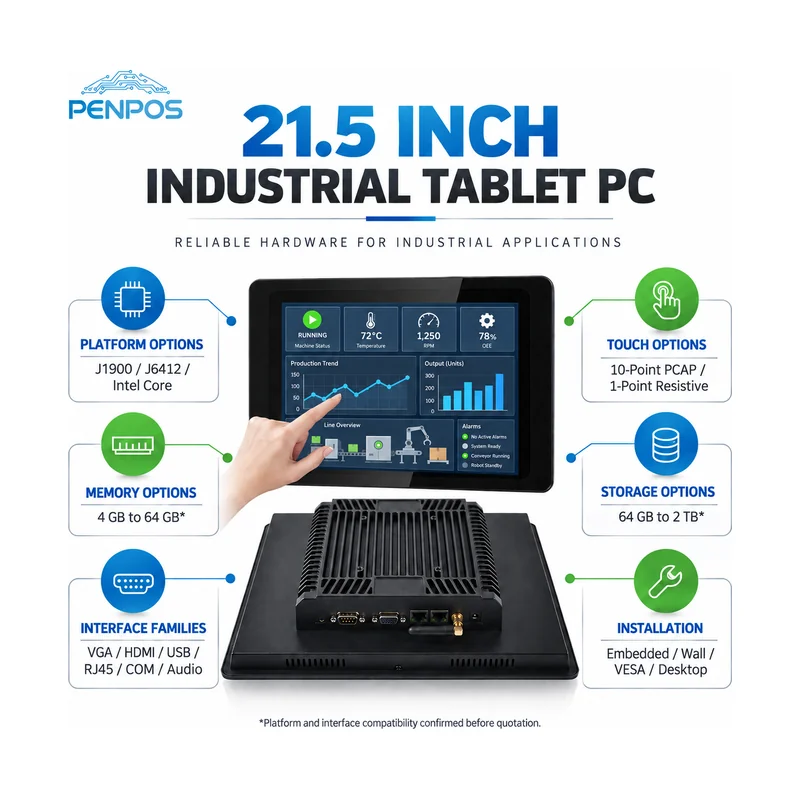

This 21.5 inch industrial tablet PC is designed for factory dashboards, machine control, process visualization and kiosk projects. It offers J1900, J6412 and Intel Core platform paths, projected-capacitive or resistive touch, configurable memory and storage, industrial interface families, and embedded, wall, VESA or desktop installation. PENPOSTECH confirms the compatible display, computer platform, I/O, operating-system image, power and mechanical construction before quotation.
Key Advantages
- Fixed 21.5-inch format for dashboards, alarms, trends and process graphics that need more viewing area.
- Alternative J1900, J6412 and Intel Core platform paths for different software and workload requirements.
- Ten-point projected-capacitive or single-point resistive touch options.
- Supplier-listed 4-64 GB memory and 64 GB-2 TB storage ranges, controlled by platform compatibility.
- VGA, HDMI, USB, RJ45/LAN, COM and audio interface families.
- Embedded, wall, VESA and desktop installation paths for OEM/ODM integration.
Technical Specifications
| Product Family | 21.5-inch industrial tablet PC and embedded HMI family; source model reference CPT-215A-KBC |
|---|---|
| Display Size | 21.5-inch display format. Native resolution, brightness, panel code, viewing angle, active area and lifecycle status require panel-specific confirmation. |
| Response Time | Supplier-listed 5 ms response-time reference; final response-time measurement method and selected-panel value require confirmation. |
| Processor Platforms | J1900, J6412 and Intel Core i3/i5/i7 platform references across multiple generations. These are alternative motherboard paths, not one simultaneous configuration; exact CPU SKU, generation, chipset, cooling and lifecycle require quotation confirmation. |
| Touchscreen Options | Ten-point projected capacitive touch or single-point resistive touch options. Cover glass, controller, bonding, glove response, wet-touch behavior, stylus support and impact resistance require project confirmation. |
| Memory Options | Supplier-listed 4, 8, 16, 32 and 64 GB memory options. Maximum capacity and memory type depend on the selected processor platform and motherboard; 64 GB is not represented as compatible with every platform. |
| Storage Options | Supplier-listed 64, 128, 256 and 512 GB plus 1 TB and 2 TB storage options. Interface, form factor, endurance, brand, capacity support and quantity depend on the selected board and enclosure. |
| Interface Family | VGA, HDMI, USB, RJ45/LAN, COM and audio are supplier-listed interface families. Exact counts, connector versions, LAN quantity, serial standards, isolation, pinout and placement depend on configuration. |
| Mounting Options | Embedded, wall, VESA and desktop installation references. Final cutout, bracket, screw pattern, stand, rear clearance and cable direction require a mechanical drawing. |
| Operating System | The source references Windows, Android and Linux. Platform architecture, licensed edition, version, driver package, image contents and application compatibility must be confirmed; Android and x86 options may require different hardware paths. |
| Oem Odm | Panel parameters, touch technology, processor platform, RAM, storage, operating-system image, interfaces, mounting, power, enclosure finish, approved corner branding, labels, cables, accessories and packaging can be reviewed as project options subject to written confirmation. |
Product Features
- The 21.5-inch display gives operators more room for production dashboards, alarm lists, process diagrams, trend charts, recipes and multi-zone controls than a compact machine HMI. It can suit control rooms, production lines, test systems and self-service terminals where information density matters. The exact panel code, native resolution, brightness, active area, viewing angle and lifecycle status are not fixed by the marketplace title and will be confirmed for the selected configuration.
- Processor choices are platform paths rather than a single universal board. The source references J1900, J6412 and several Intel Core i3, i5 and i7 generations. A low-power platform may be adequate for data entry, browser dashboards or simple HMI software, while vision, analytics, database or multi-application workloads may need a newer Core platform. Buyers should provide the application name, operating system, required drivers, CPU load, graphics requirement, peripherals, expected lifecycle and performance target so PENPOSTECH can review an appropriate motherboard and thermal design.
- Memory is supplier-listed from 4 GB to 64 GB and storage from 64 GB to 2 TB, but maximum capacity depends on the selected processor, motherboard, memory technology, storage interface and enclosure. The 64 GB option must not be assumed for J1900 or every board. Storage also needs project-level decisions on form factor, interface, endurance, capacity, operating temperature and serviceability. The formal quotation will map the CPU, RAM and storage combination as one compatible system.
- Touch can be configured as ten-point projected capacitive or single-point resistive. PCAP is useful for modern multi-touch dashboards and gesture-based software, while resistive touch may suit single-point operation, stylus input or some gloved workflows. Final selection should consider gloves, liquids, cleaning agents, stylus type, cover glass, touch controller, bonding, edge treatment, wet-touch behavior, impact exposure and software support. Sample testing is recommended when the touch environment is critical.
- The supplier lists VGA, HDMI, USB, RJ45/LAN, COM and audio interface families. These can support external displays, scanners, printers, cameras, PLCs, serial devices, network connections and other peripherals, but the listing does not establish exact quantities or electrical details. Send an I/O list that specifies connector type, count, USB generation, LAN quantity, COM mode, RS232/RS485 requirements, isolation, pinout, cable direction and peripheral models. The final connector drawing and quotation will define the delivered interface set.
- Embedded, wall, VESA and desktop installation paths are referenced. Each installation changes the front flange, cutout, rear clearance, bracket, screw pattern, cable bend radius, ventilation and maintenance access. Embedded projects should provide a dimensioned cabinet drawing and panel thickness. Wall or VESA installations should identify orientation, bracket restrictions, vibration, service access and cable direction. Desktop projects should confirm stand geometry and stability requirements. Mechanical drawings must be approved before cabinet production or volume deployment.
- The source product uses a slim black front bezel and a finned rear computer enclosure with rear-facing connectors. The visual construction supports an integrated operator terminal, but the image alone does not prove material grade, coating, fanless operation, ingress rating, impact resistance or operating-temperature range. Thermal performance depends on processor load, panel brightness, memory, storage, power conversion, ambient temperature, airflow, mounting orientation and duty cycle. Share the operating environment and workload so cooling and enclosure details can be reviewed. Any protection rating must be tied to the exact construction and test evidence.

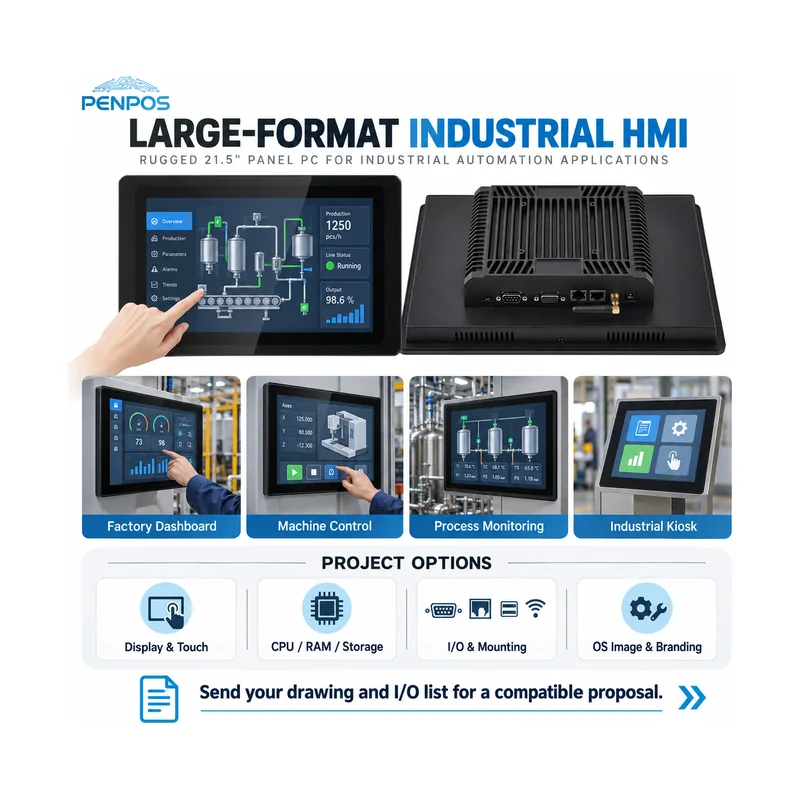

Application Scenarios
- Large-format factory dashboards showing production status, alarms, KPIs and trend charts.
- Machine-control stations for recipes, setpoints, diagnostics and operator instructions.
- Process-monitoring terminals for utilities, treatment systems, manufacturing and test equipment.
- Production data, quality, maintenance and traceability workstations.
- Industrial kiosks and self-service terminals with a project-approved enclosure and mounting method.
- Wall-mounted, VESA-mounted or embedded operator stations using a confirmed configuration.
OEM and ODM Options
PENPOSTECH can review the 21.5-inch panel, resolution, brightness, cover glass, PCAP or resistive touch, processor platform, RAM, storage, operating-system image, display outputs, USB, LAN, serial communication, audio, mounting, power input, enclosure finish, small corner branding, labels, cables, accessories and packaging. Compatible combinations, protection evidence, certification, thermal validation, package contents, MOQ, warranty and delivery schedule require written confirmation.
Who This Product Is For
This large-format industrial HMI is intended for automation integrators, machine builders, industrial software companies, equipment manufacturers, kiosk developers, distributors and OEM buyers. Send quantity, destination, software, workload, touch environment, I/O list, mechanical drawing, installation, power, operating environment, compliance, branding, packaging and schedule requirements for a compatible proposal.
Why Choose PENPOSTECH
PENPOSTECH keeps verified source options separate from claims that still require engineering evidence. The 21.5-inch size, platform families, touch choices, memory and storage ranges, interface families and mounting paths remain clear, while protection, certification, thermal range and commercial terms stay controlled by the final configuration and quotation. Product visuals use a small upper-left PENPOS mark and leave the product body unbranded.
Frequently Asked Questions
Which processor platforms are available for this 21.5-inch industrial tablet PC?
The source references J1900, J6412 and multiple Intel Core i3, i5 and i7 paths. Exact CPU SKU, generation, motherboard, cooling, lifecycle and compatible memory must be confirmed for the workload.
Can every platform support 64 GB RAM and 2 TB storage?
No. Those are supplier-listed family ranges, not a universal combination. Maximum RAM, memory type, storage interface and capacity depend on the selected board and enclosure.
Can I choose capacitive or resistive touch?
Yes, the source lists ten-point projected-capacitive and single-point resistive options. The final touch stack should be selected around gloves, liquids, stylus input, cleaning, cover glass and software behavior.
Which industrial interfaces can be requested?
VGA, HDMI, USB, RJ45/LAN, COM and audio are listed interface families. Exact counts, versions, LAN quantity, serial mode, isolation, pinout and connector placement require a final I/O list.
Is this panel PC guaranteed to be IP67?
No fixed IP rating is claimed on this page. Protection must be tied to the protected surface, connectors, cable entries, mounting boundary, test standard and exact construction, with evidence for the selected configuration.
What should I send for a quotation?
Send quantity, destination, application, software, CPU class, RAM, storage, resolution, brightness target, touch conditions, I/O list, serial protocol, LAN quantity, power, mounting drawing, environment, protection scope, certification, branding, packaging and schedule.
Related PENPOSTECH Resources
Request Project Information
Send your quantity, destination, application, software, workload, processor class, RAM, storage, display requirement, touch conditions, I/O list, serial protocol, LAN quantity, power, mounting drawing, operating environment, protection scope, certification, branding, packaging and schedule. PENPOSTECH will prepare a compatible 21.5 inch industrial tablet PC configuration and formal quotation.
