Compact Industrial Panel PC in 7, 8 & 12.1 Inch Sizes: 10-Point Touch, 1500-Nit Option, Embedded & VESA Mount
This compact industrial panel PC family focuses on 7, 8, and 12.1 inch operator interfaces for space-constrained HMI and equipment-control projects. It combines ten-point capacitive touch with configurable brightness, industrial interface families, and wall, VESA, open-frame, or embedded mounting. PENPOSTECH confirms the panel, computing platform, memory, storage, I/O, power, protection scope, and operating-system image before quotation.

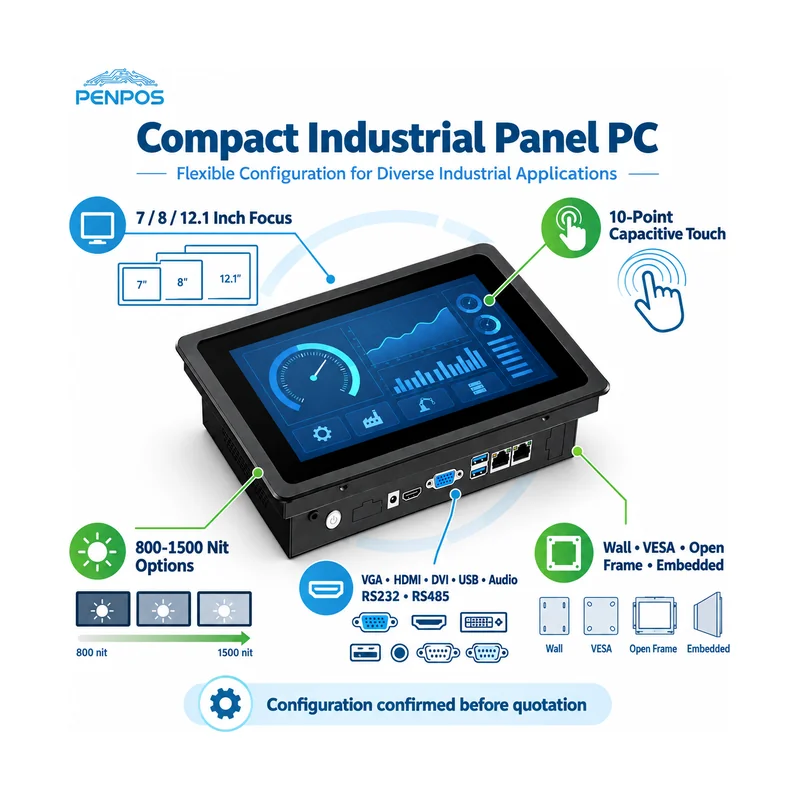

Key Advantages
- Compact 7, 8, and 12.1 inch project focus for machine panels and embedded HMIs.
- Ten-point capacitive touch for modern operator interfaces and gesture-based software.
- Supplier-listed 800, 1000, 1200, and 1500 nit high-brightness options.
- VGA, HDMI, DVI, USB, audio, RS232, and RS485 interface families.
- Wall, VESA, open-frame, and embedded installation paths.
- Configuration-first OEM/ODM review instead of a misleading fixed specification.
Technical Specifications
| Product Family | Compact industrial all-in-one panel PC family; the supplier page does not disclose one stable product model code |
|---|---|
| Screen Sizes | 7, 8, and 12.1 inch sizes are the source-title focus. The supplier variant selector also presents additional panel sizes, so final size, panel code, cutout, rear depth, and availability require quotation confirmation. |
| Display Mapping | Supplier detail media presents size-dependent 4:3 and 16:9 display formats and resolution references. Final aspect ratio, resolution, active area, viewing angle, brightness, and mechanical drawing depend on the selected panel. |
| Touchscreen | Ten-point capacitive touchscreen |
| Brightness Options | Supplier-listed high-brightness customization references of 800, 1000, 1200, and 1500 nit. A supplier panel chart also shows lower standard brightness for some sizes, so high brightness is an option rather than a universal baseline. |
| Interface Family | VGA, HDMI, DVI, USB, audio, RS232, and RS485 are supplier-listed interface families. Exact counts, connector versions, LAN requirement, serial modes, isolation, pinout, and placement depend on configuration. |
| Mounting Options | Wall mounting, VESA, open-frame, and embedded installation references |
| Construction | Black recessed front bezel with a deep rear enclosure and side ventilation in the supplier hero reference; exact enclosure material, coating, dimensions, sealing method, and thermal construction require configuration confirmation. |
| Surface Treatment | Supplier description references sunlight-readable, anti-glare, and anti-UV customization. Exact optical stack, coating, haze, bonding, UV performance, and visibility target require project confirmation. |
| Oem Odm | Display size and resolution, brightness, touch stack, processor platform, RAM, storage, operating-system image, interfaces, mounting, power, enclosure finish, approved corner branding, labels, cables, accessories, and packaging can be reviewed as project options subject to written confirmation. |
Product Features
- The family is designed for machine doors, control cabinets, operator stations, test equipment, and space-limited kiosks. The supplier title highlights 7, 8, and 12.1 inch formats, but each size may use a different enclosure or board. Send the external dimensions, cutout, rear depth, cable clearance, and mounting drawing for confirmation.
- Panel shape and resolution are size-dependent. Supplier detail media includes both 4:3 and 16:9 references, with different resolutions and dimensions across the family. A 7 inch widescreen installation may require a different interface arrangement and cutout than an 8 or 12.1 inch industrial 4:3 panel. PENPOSTECH will confirm the panel code, aspect ratio, native resolution, viewing angle, luminance, active area, outside dimensions, cutout tolerance, and lifecycle status before cabinet production.
- Ten-point capacitive touch is listed for the product family. It can support multi-touch dashboards, gesture-based navigation, recipe selection, alarm acknowledgment, data visualization, and interactive equipment software. The reference does not prove identical cover glass, controller, bonding, glove response, wet-touch behavior, stylus compatibility, impact resistance, or chemical resistance for every option. Buyers should describe the operator, gloves, liquids, cleaning agents, stylus, ambient light, and acceptance test so the touch stack can be selected and sampled correctly.
- Brightness is configurable rather than fixed. The supplier lists 800, 1000, 1200, and 1500 nit high-brightness options, while its screen chart shows lower standard luminance for some panels. Indoor cabinets may not need the heat and power load of a 1500 nit backlight, while sunlit or outdoor-facing interfaces need a defined visibility target. Send the target luminance, viewing direction, operating hours, dimming requirement, ambient temperature, UV exposure, anti-glare expectation, and power budget for an appropriate panel proposal.
- The listed interface families include VGA, HDMI, DVI, USB, audio, RS232, and RS485 for displays, touch communication, scanners, sensors, PLCs, serial devices, and peripherals. Exact port counts, USB generation, LAN quantity, serial mode, isolation, pin definition, and connector orientation are not established. The final quotation and connector drawing must define the delivered I/O, followed by sample validation.
- Wall, VESA, open-frame, and embedded installation paths are referenced. Each method changes the flange, bracket, screw pattern, cutout, rear clearance, cable bend radius, airflow, sealing boundary, and maintenance access. Embedded machine panels should provide a dimensioned cabinet drawing before tooling or enclosure confirmation. VESA and wall-mounted projects should state orientation, bracket limits, vibration, service access, and cable direction. PENPOSTECH will review the mounting structure with the selected display and motherboard rather than assuming one chassis fits every deployment.
- The source shows a black recessed front bezel with a deep rear enclosure and side ventilation. This visual design can suit embedded operator terminals, but the image alone does not establish enclosure material, coating specification, ingress protection, impact rating, or thermal range. Final thermal behavior depends on processor load, panel brightness, memory, storage, power conversion, ambient temperature, airflow, mounting orientation, and duty cycle. Send the workload and environment so the enclosure and cooling approach can be reviewed.
- Protection wording on the supplier page is not consistent: overview content highlights IP65, while another field lists multiple higher customization grades. This page therefore makes no fixed IP or hazardous-location claim. Projects involving dust, washdown, outdoor exposure, food processing, chemicals, marine use, or hazardous areas must define the protected surface, connector exposure, installation method, test standard, required documents, materials, gaskets, cable entries, and acceptance plan. Any protection statement must be tied to the final construction and evidence.

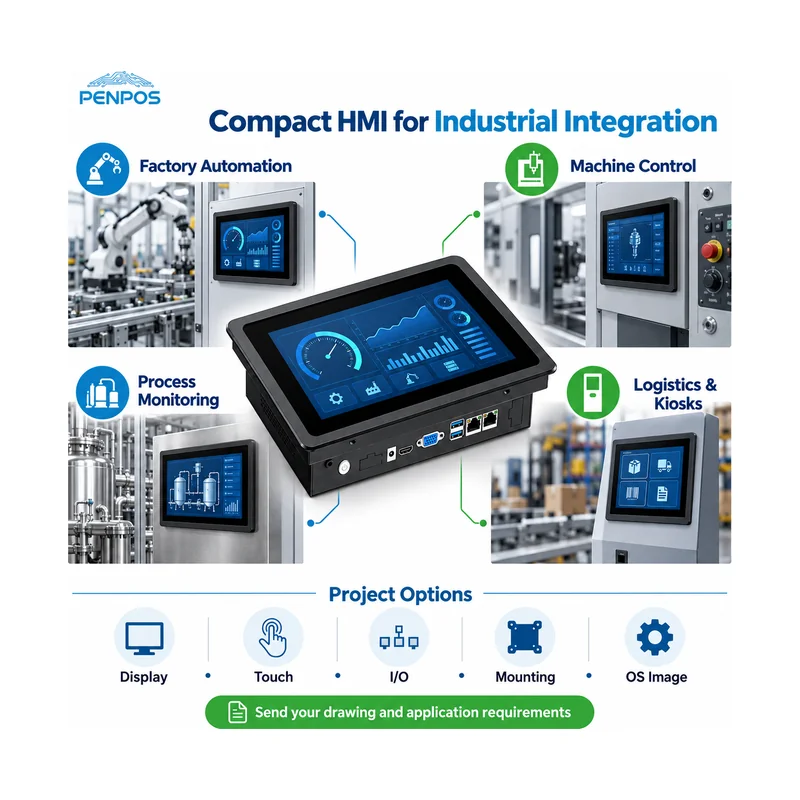

Application Scenarios
- Factory automation panels, production-line dashboards, and compact PLC-connected HMIs.
- Machine operation, recipe selection, status display, alarms, and equipment diagnostics.
- Process monitoring, instrumentation displays, and industrial data terminals.
- Warehouse, logistics, dispatch, barcode, and material-tracking stations.
- Compact kiosks and embedded service terminals with confirmed panel and mounting drawings.
- Wall-mounted or VESA-mounted operator displays using a project-approved configuration.
OEM and ODM Options
PENPOSTECH can review the display size, aspect ratio, resolution, brightness, cover glass, capacitive touch behavior, computing platform, RAM, storage, operating-system image, display and serial interfaces, LAN requirements, mounting structure, power input, enclosure finish, small corner branding, labels, cables, accessories, and packaging. Compatible combinations, protection evidence, certification, thermal validation, package contents, MOQ, warranty, and delivery schedule require written confirmation.
Who This Product Is For
This compact family is intended for automation integrators, machine builders, HMI software companies, equipment manufacturers, kiosk developers, distributors, and OEM buyers. Send quantity, destination, application, mechanical drawing, display, touch, computing, I/O, mounting, environment, compliance, packaging, and schedule requirements for a compatible proposal.
Why Choose PENPOSTECH
PENPOSTECH separates supplier-listed options from configuration items that still require engineering confirmation. Compact screen focus, touch, brightness, interfaces, and mounting remain visible, while processor, memory, storage, protection, certification, and commercial terms stay controlled by the final quotation. Product visuals use a small upper-left PENPOS logo while leaving the machine body unbranded.
Frequently Asked Questions
Which compact screen sizes are the focus of this panel PC family?
The source title highlights 7, 8, and 12.1 inch models. Exact panel code, aspect ratio, resolution, dimensions, cutout, rear depth, brightness, and availability must be confirmed for the selected configuration.
Does every model support ten-point capacitive touch?
Ten-point capacitive touch is supplier-listed for the family. Cover glass, controller, bonding, glove response, wet-touch behavior, stylus support, and environmental performance must be confirmed for the chosen panel.
Can the display be configured for high ambient light?
The source lists 800, 1000, 1200, and 1500 nit options. Final luminance, anti-glare treatment, UV exposure, dimming, temperature, power, and visibility targets require panel-specific confirmation.
Which interfaces can be requested?
The supplier lists VGA, HDMI, DVI, USB, audio, RS232, and RS485 interface families. Exact counts, versions, LAN quantity, serial mode, isolation, pinout, and connector position depend on the selected motherboard and enclosure.
Is the complete panel PC guaranteed to be IP65 or higher?
No fixed protection grade is claimed on this page because supplier fields conflict. The protected surface, construction, exposed connectors, installation, test standard, and evidence must be reviewed for the final configuration.
What information is needed for a quotation?
Send quantity, destination, application, screen size, resolution, brightness, touch conditions, software, CPU class, RAM, storage, I/O, serial protocol, LAN, power, mounting drawing, environment, protection scope, certification, branding, packaging, and schedule.
Related PENPOSTECH Resources
Request Project Information
Send your quantity, destination, application, mechanical drawing, screen size, resolution, brightness, touch conditions, software, processor class, RAM, storage, interface list, serial protocol, LAN requirement, power, mounting, operating environment, protection scope, certification, branding, packaging, and schedule. PENPOSTECH will prepare a compatible compact industrial panel PC configuration and formal quotation.
